Engine Coolant Temperature Sensor (G2249553): Removal

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. Raise and support the vehicle on a suitable 2 post lift.

    Refer to: LIFTING

  2. Drain the engine cooling system.

    Refer to: COOLING SYSTEM DRAINING AND VACUUM FILLING

  3. Remove the secondary bulkhead right inner panel.

    Refer to: SECONDARY BULKHEAD RIGHT INNER PANEL - PROJECT 8

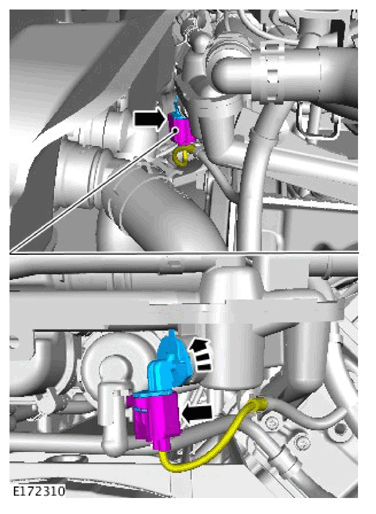

  4. WARNING: Since injury such as scalding could be caused by escaping steam or coolant, do not remove the engine coolant temperature sensor while the system is hot.
    CAUTION: Be prepared to collect escaping coolant.
    G11308490Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
