Crankshaft Position Sensor (G2244150): Removal

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. Raise and support the vehicle on a suitable 2 post lift.

    Refer to: LIFTING

  2. Remove the transmission undershield.

    Refer to: TRANSMISSION UNDERSHIELD - PROJECT 8

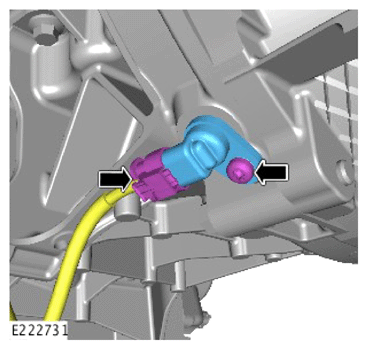

  3. G14005685Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
