Mass Air Flow And Temperature Sensor

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

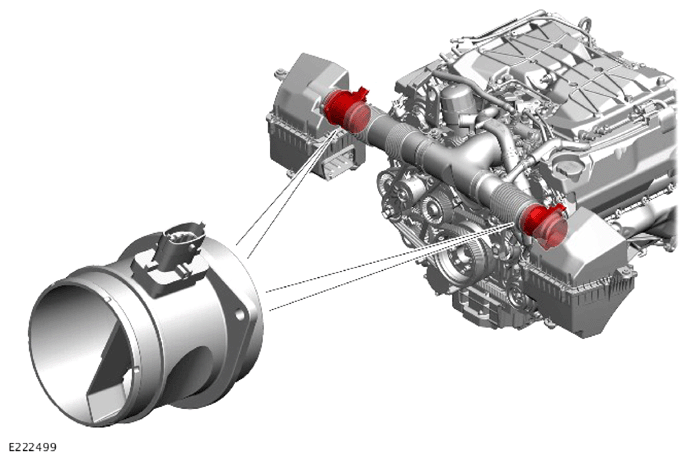

G14005653Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

The Mass Air Flow and Temperature (MAFT) sensors allow the Powertrain Control Module (PCM) to measure the mass flow and the temperature of the air flow into the engine. The mass air flow is measured with a hot film element in the sensor. The temperature of the air flow is measured with a Negative Temperature Coefficient (NTC) resistor in the sensor. The mass air flow is used to determine the fuel quantity to be injected in order to maintain the stoichiometric air:fuel mixture required for correct operation of the engine and the catalytic converters.

Identical MAFT sensors are attached to each of the air cleaner outlets. On each MAFT sensor, a 5 pin electrical connector provides the interface with the engine harness.

If the hot film element signal fails the PCM invokes a software backup strategy to calculate the mass air flow from other inputs. Closed loop fuel control, closed loop idle speed control and evaporative emissions control are discontinued. The engine will suffer from poor starting, poor throttle response and if the failure occurs while driving, the engine speed may dip before recovering.

If the NTC resistor signal fails the PCM adopts a default value of 25°C (77°F) for the intake air temperature.
