Component Location - 4 Of 4

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

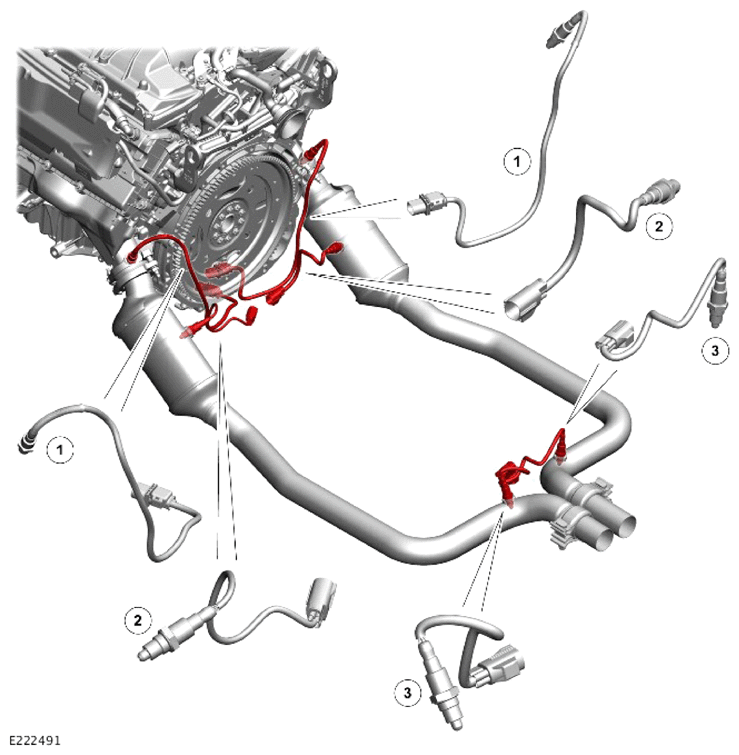

G13911986Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
ITEM DESCRIPTION
1 Heated Oxygen Sensor (HO2S) - Pre catalyst (2 off)
2 HO2S - Mid catalyst (2 off)
3 HO2S - Post catalyst (2 off)
