Component Location - 3 Of 4

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

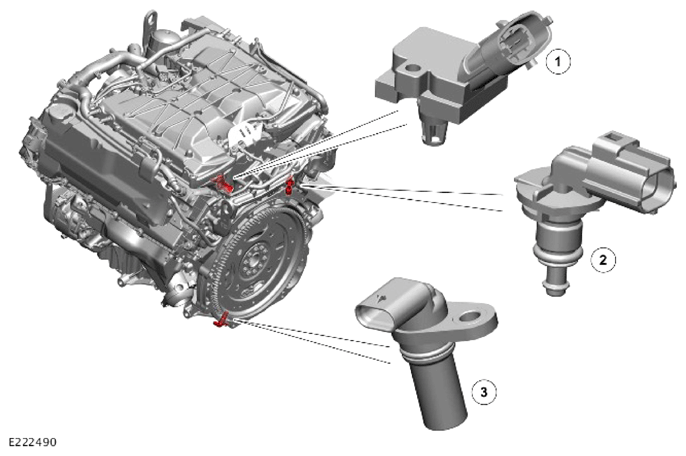

G14005644Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
ITEM DESCRIPTION
1 Manifold Absolute Pressure and Temperature (MAPT) sensor
2 Engine Coolant Temperature (ECT) sensor
3 Crankshaft Position (CKP) sensor
