Component Location - 1 Of 4

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Left Hand Drive (LHD) vehicle is shown.

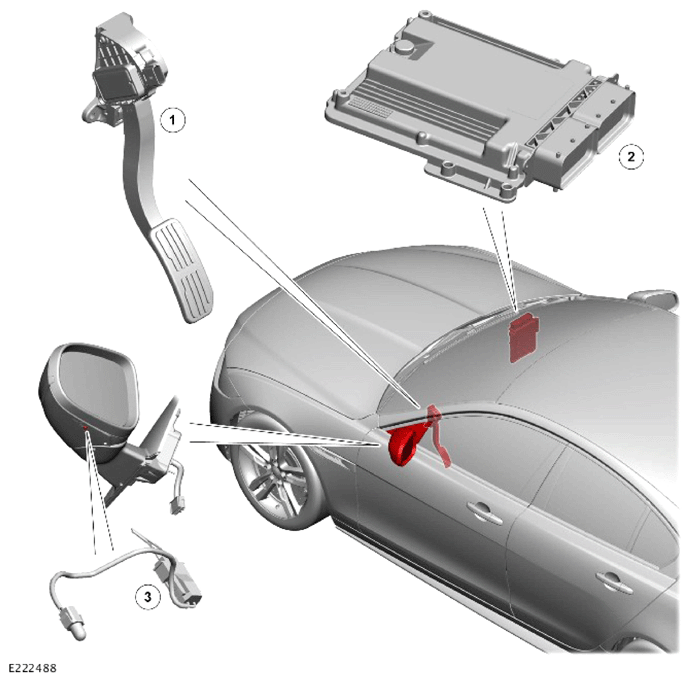

G14005642Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
ITEM DESCRIPTION
1 Accelerator Pedal Position (APP) sensor
2 Powertrain Control Module (PCM)
3 Ambient Air Temperature (AAT) sensor
