Torque specifications

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

TORQUE COMPONENT LOCATION

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE COMPONENT LOCATION

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

	DESCRIPTION	NM	LB-FT	LB-IN
1	Rear spoiler retaining nuts	9	-	80

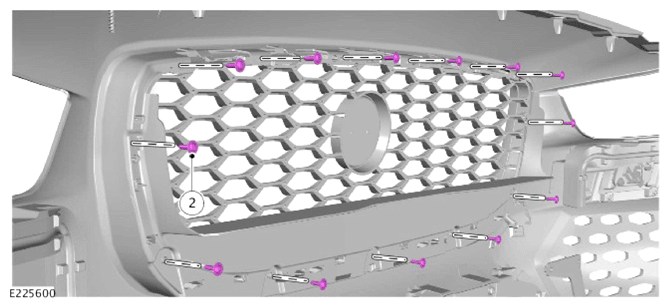

2	Radiator grille screws	2	-	18

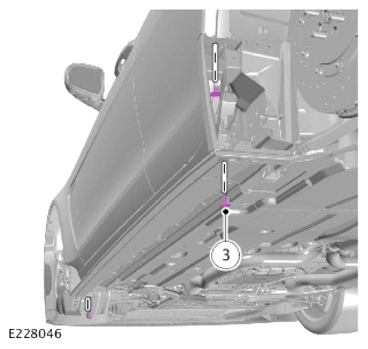

3	Rocker panel retaining bolts	6	-	53

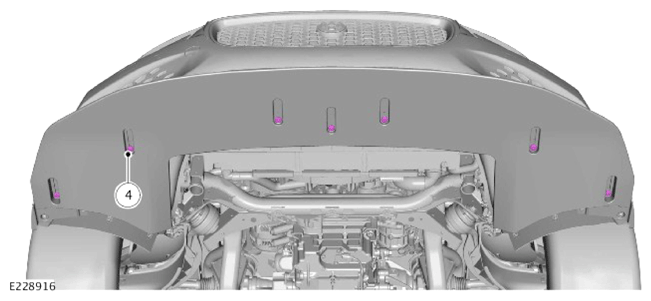

4	Front splitter bolts	25	18	-
