Front Splitter Adjust - Project 8 (G2246724): Check

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

The front splitter installed to Project 8 Touring edition vehicles is fixed in the road setting and is not adjustable or interchangeable with the adjustable type.
The track setting of the front splitter is not for use on the public highway.
If the vehicle has any components adjusted for track settings the vehicle must not be driven on the public highway and must be appropriately transported.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
NOTE: To position the front splitter for track use.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

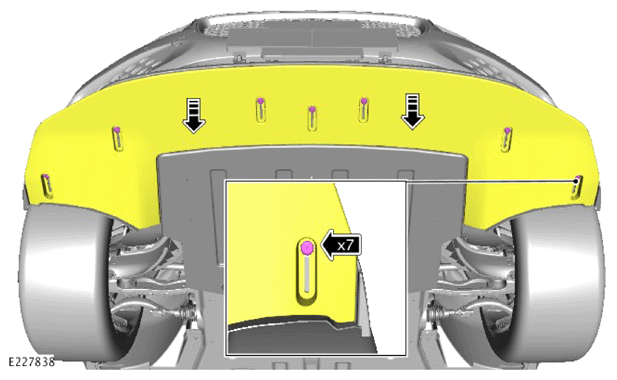

1. Loosen the 7 bolts 2 turns.
2. Position the front splitter towards the front of the vehicle as illustrated.
3. Tighten the 7 bolts to the correct torque.
  Torque : 25Nm
NOTE: To position the front splitter for road use.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

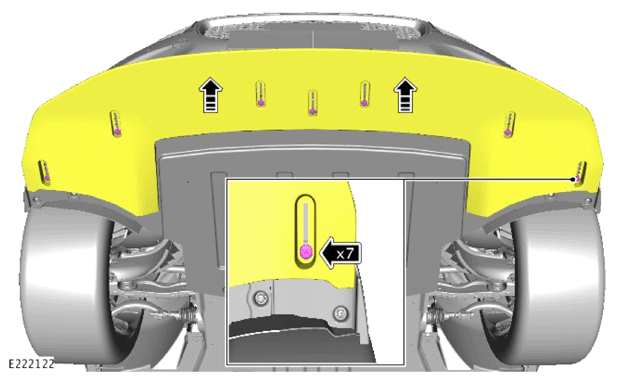

1. Loosen the 7 bolts 2 turns.
2. Position the front splitter towards the rear of the vehicle as illustrated.
3. Tighten the 7 bolts to the correct torque.
  Torque : 25Nm
