Headlamp Cleaning Procedure
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
DO NOT
replace the headlamp
The headlamp is designed to resist a wide variety of commonly applied automotive chemicals. Long periods of chemical stagnation can damage the lens surface, particularly if also subjected to heat. Keeping this gap free from dirt, debris and chemicals through regular cleaning will give the best opportunity to avoid the staining.
Please complete the following steps to remove the staining from both headlamps: (Refer to images for guidance):
NOTE:
- Images are a representation and may differ from vehicle to vehicle

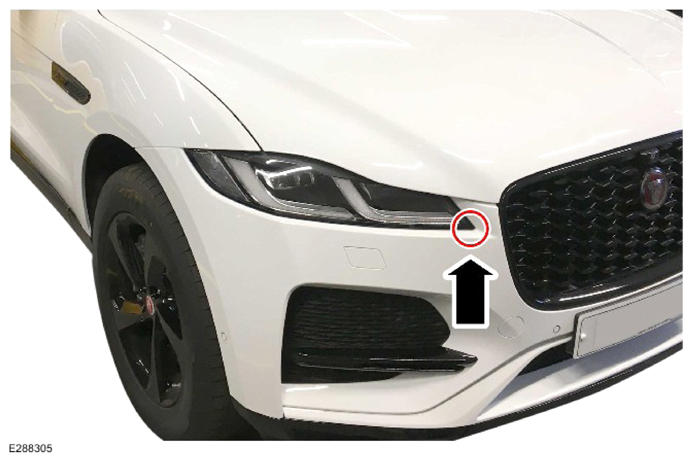

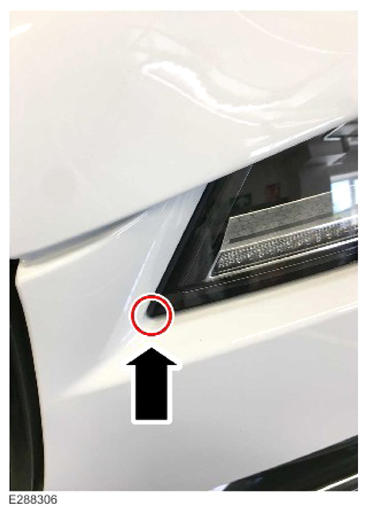

- Area of concern
NOTE:

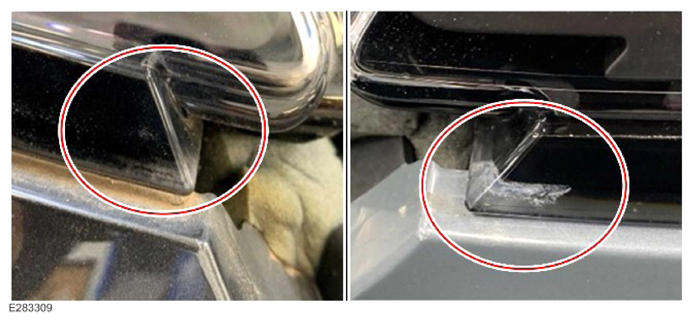

Example of staining
NOTE:
Example after cleaning
CAUTION:
Never aim the water jet directly at any at any components which may be damaged. For example lights, mirrors, exterior trim, suspension seals and gaiters. Make sure the pressure washer nozzle is always at a distance of more than 300mm from any component of the vehicle
- Using a soft clean cloth, thoroughly wipe the headlamp to bumper interfaces (area highlighted in the images) with the addition of a mild vehicle shampoo, mixed according to the manufacturer's instructions, to remove all dirt and debris between the interface. If the interfaces show a noticeable residue, consider spending additional time when applying the shampoo and applying more physical pressure with the cloth.
- If the steps above do not remove the staining, remove the headlamp from the vehicle and repeat step 1
.
Refer to: HEADLAMP ASSEMBLY
- Install the headlamp(s) Refer to: HEADLAMP ASSEMBLY
- Pressure wash the interface well using clean water (no chemicals added) to make sure the interface is free from shampoo or other chemicals.
- Thoroughly dry the interface using tools such as a pressure airline or a soft cloth. Make sure no moisture is trapped between the headlamp and bumper interface.
- Please inform the customer of the cause and that cleaning the headlamp to bumper interfaces regularly during valeting will remove staining.
