Wheel transit protection
WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Recycle the wheel transit protection in accordance with local regulations.
NOTE:
Items 1 and 2 are a complete wheel protector clip assembly.

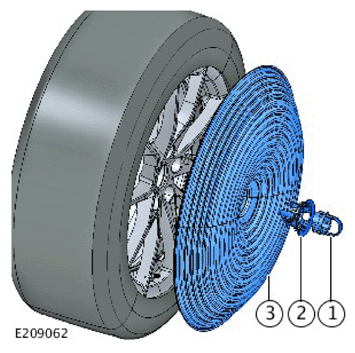

| COMPONENT NUMBER | COMPONENT NAME |
|---|---|
| 1 | Wheel protector - inner clip lock |
| 2 | Wheel protector - clip outer |
| 3 | Wheel protector - disc |
- With one hand, push the insert slightly in, make sure you press on the disc retention ring and not the grab hook.
- Grab the hook with your other hand and pull the insert quickly out.
- All or some of the insert hooks will break off. Remove remaining inset hooks from bore.
