Torque specification
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Numbers with a green background are a single use components.

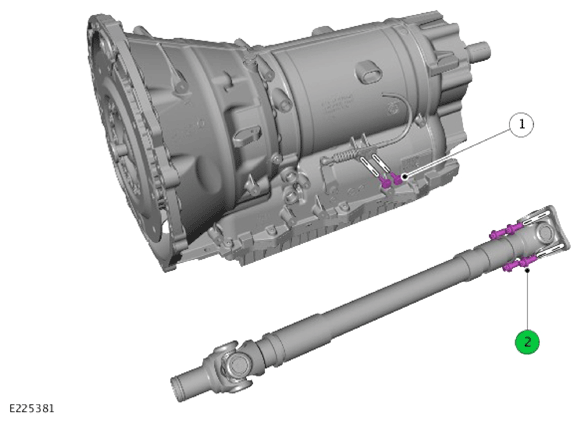

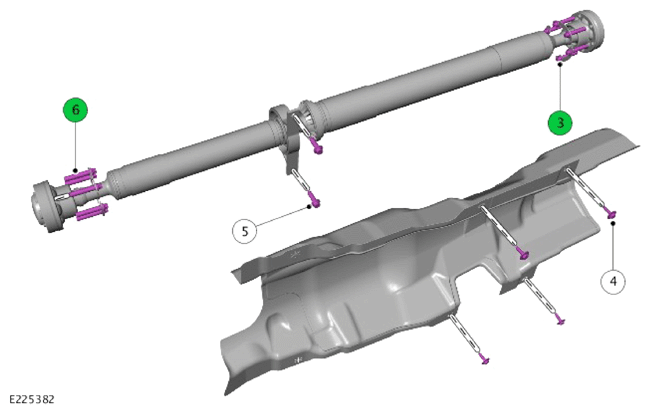

COMPONENT TORQUE LOCATION
TORQUE SPECIFICATION
| DESCRIPTION | NM | LB-FT | LB-IN | |||
|---|---|---|---|---|---|---|
| 1 | Gear selector lever arm bracket bolt | 11 | 8.1 | - | ||
| 2 | Front driveshaft to transfer case flange bolt | Stage 1: 40 | Stage 2: 90° | Stage 1: 29.5 | Stage 2: 90° | - |
| 3 | Rear driveshaft to rear differential flange bolt | 73 | 53.8 | - | ||
| 4 | Heatshield bolt | 9 | - | 79.6 | ||
| 5 | Rear driveshaft center bearing bracket bolt | 47.5 | 35.0 | - | ||
| 6 | Rear driveshaft to transfer case flange bolt | 73 | 53.8 | - | ||
