Driveshaft - V8 S/C 5.0L Petrol, Project 8 (G2248156): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

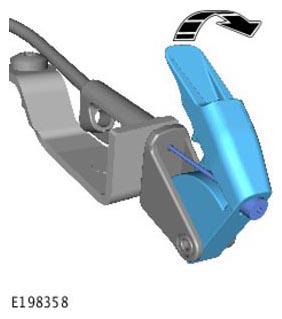

Release the Emergency Park Release (EPR) cable.
Remove the exhaust system.
Refer to: EXHAUST SYSTEM CENTER SECTION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

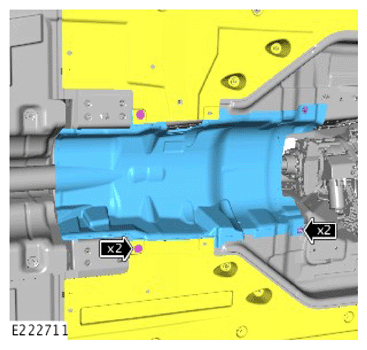

- Remove the 2 bolts and 2 clips.
- Remove the heatshield.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

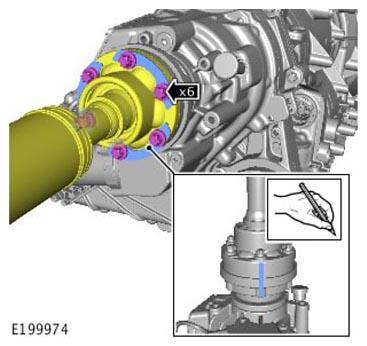

- Mark the position of the driveshaft flange in relation to the output flange.
- Remove and discard the 6 output flange bolts.
Disconnect the driveshaft from the rear differential.
Refer to: DRIVESHAFT TO REAR DIFFERENTIAL DISCONNECTION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

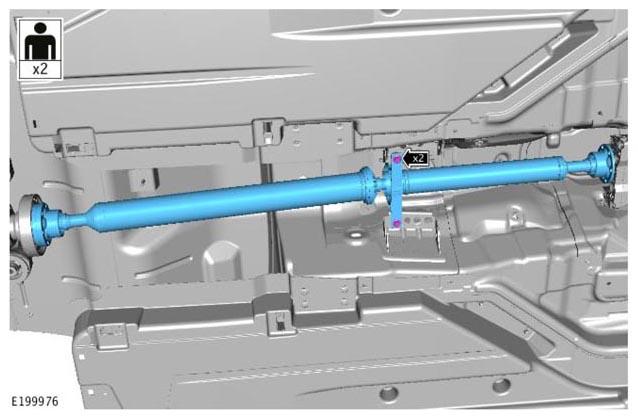

- Remove the 2 bolts.
- WARNING: This requires the aid of another technician.
Remove the rear driveshaft.
