Driveshaft - V6 S/C 3.0L Petrol (G1817224): Installation

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
  1. CAUTION: Make sure that new bolts are installed.

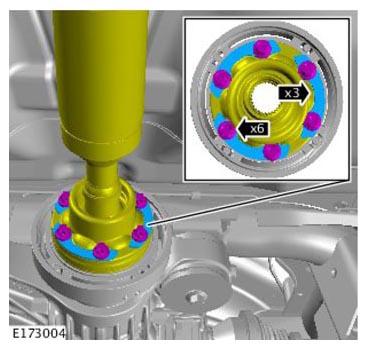

    G11305732Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Renew Part: Rear driveshaft constant velocity joint bolts  Quantity: 6.

    Torque  : 73Nm

  2. To install, reverse the removal procedure.
