Driveshaft - INGENIUM I4 2.0L Petrol (G2028369): Removal
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- Raise and support the vehicle on a suitable 2-post lift.
Refer to: LIFTING
- Remove the engine cover.
Refer to: ENGINE COVER - INGENIUM I4 2.0L PETROL
Release the emergency park release cable.
- Remove the exhaust system.
Refer to: EXHAUST SYSTEM

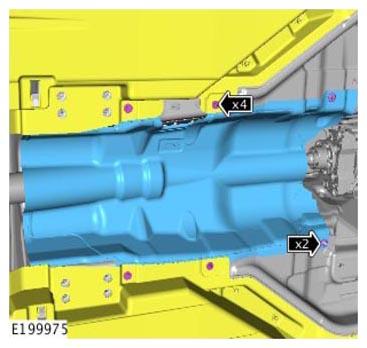

- Remove the 4 bolts.
- Remove the 2 clips.
- Remove the heatshield.
- Mark the position of the driveshaft flange in relation to the output flange.
- Remove and discard the 6 output flange bolts.
-
WARNING: Make sure that the special tool is installed and used correctly. This will help prevent serious injury and damage to the vehicle and equipment.CAUTION:
- Support the driveshaft at all times to prevent the damage to the centre bearing.
- Using a suitable hammer and drift, make sure to only hit the corner edges of the special tool to remove the driveshaft.
- Care must be taken when handling the Constant Velocity joint (CV) joint. Failure to follow this instruction may disassemble the CV joint.
- Install the special tool.
Special Tool(s): 205-932
- Using the special tool, disconnect the rear driveshaft.
- Remove the special tool.
Special Tool(s): 205-932
- Disconnect the driveshaft from the rear differential.
-
WARNING: This requires the aid of another technician.
- Remove the 2 bolts.
- Remove the driveshaft.
