Fuel Pressure Sensor - Low Pressure Fuel System
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

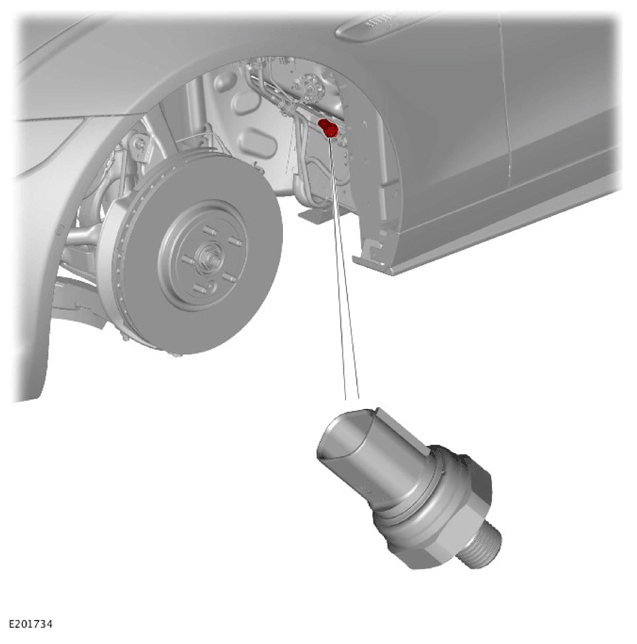

The Low Pressure (LP) fuel system fuel pressure sensor is located behind the front left wheel arch liner. The fuel pressure sensor is attached to a bracket with a screw. The sensor is located in a connector between the fuel pump module and the LP delivery line to the High Pressure (HP) fuel pump. The sensor measures the fuel pressure being supplied from the LP fuel pump to the HP fuel pump.
