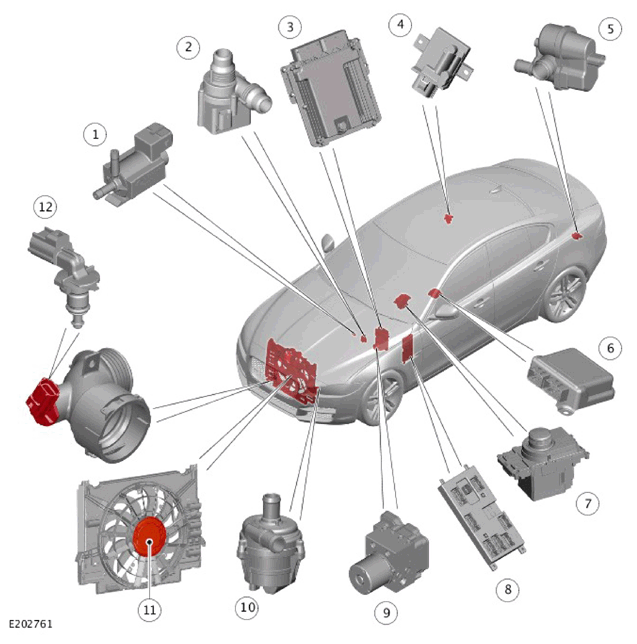

Component Location - 3 Of 4
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Active engine mount solenoid |
| 2 | Auxiliary coolant pump |
| 3 | Powertrain Control Module (PCM) |
| 4 | Fuel Pump Driver Module (FPDM) |
| 5 | Diagnostic Module Tank Leakage (DMTL) pump - North American Specification (NAS) vehicles only |
| 6 | Restraints Control Module (RCM) |
| 7 | Transmission Control Switch (TCS) |
| 8 | Body Control Module/Gateway Module (BCM/GWM) |
| 9 | Anti-lock Brake System (ABS) control module |
| 10 | Charge air coolant pump |
| 11 | Electric cooling fan |
| 12 | Radiator outlet Engine Coolant Temperature (ECT) sensor |
