Fuel Fired Booster Heater Receiver Unit (G1818562): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
  1. Refer to: PARCEL SHELF .

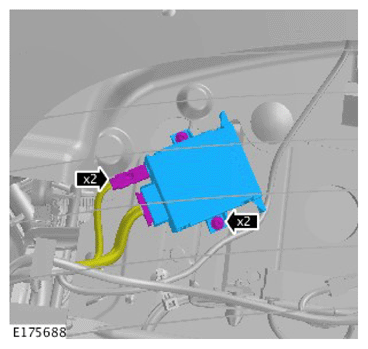

  2. G14008446Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 1.3Nm
