Fuel Fired Booster Heater Coolant Pump (G1818560): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
  1. Refer to: FUEL FIRED BOOSTER HEATER  .

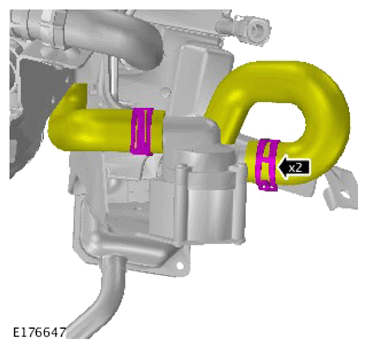

  2. G14008425Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

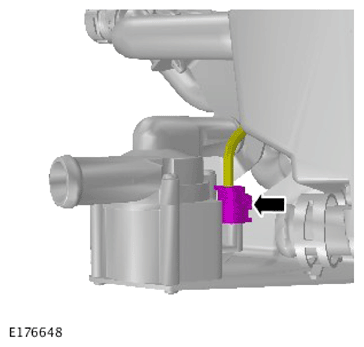

  3. G14008426Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

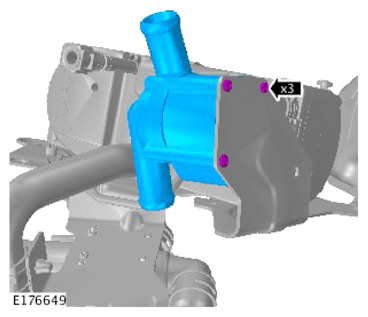

  4. G14008427Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 1.5Nm
