Fuel Fired Booster Heater Control Module (G2160131): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Make sure to support the vehicle with axle stands.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the Fuel Fired Booster Heater (FFBH).

    Refer to: ELECTRIC BOOSTER HEATER  .

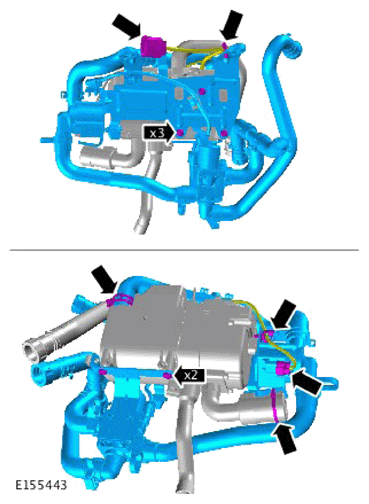

  2. G13989953Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

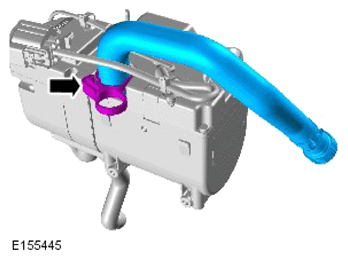

  3. G13989954Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

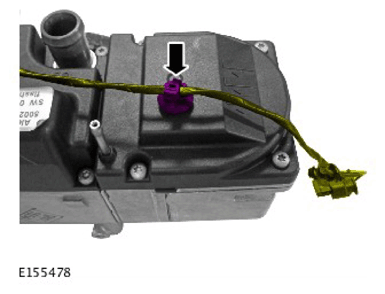

  4. G11310660Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

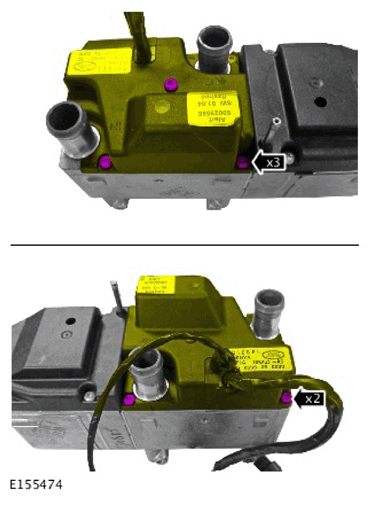

  5. G11310661Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  6. G14008422Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

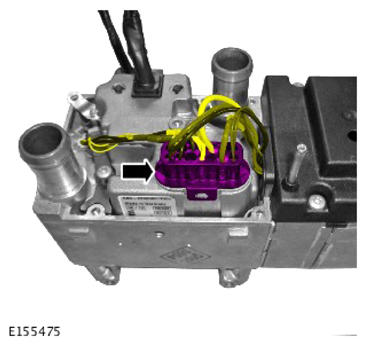

  7. G14008423Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

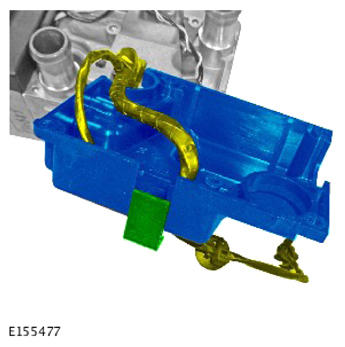

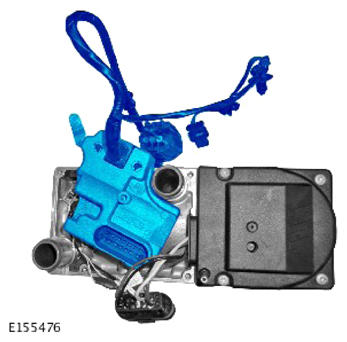

  8. G14008424Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
