Fuel Fired Booster Heater Blower (G2159633): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Remove the Fuel Fired Booster Heater (FFBH).
Refer to: FUEL FIRED BOOSTER HEATER COMBUSTION CHAMBER .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

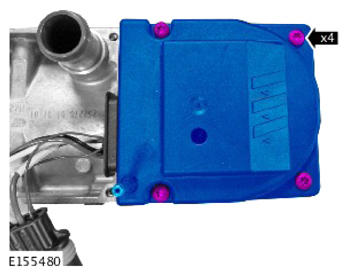

Remove the 4 retaining bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

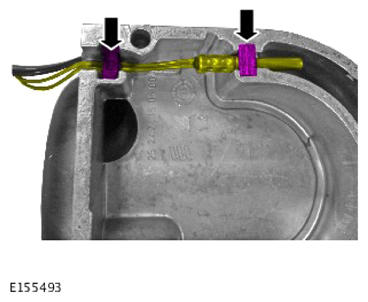

Remove the heater element.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

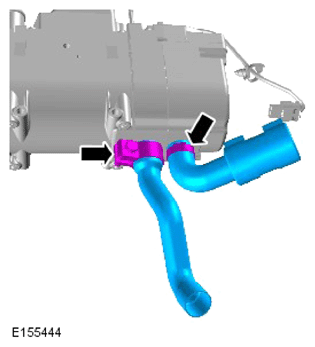

Remove the pipes.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

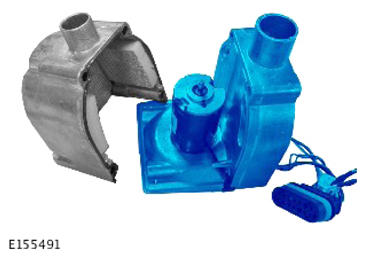

Remove the FFBH blower.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

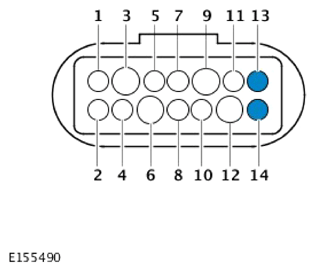

Using a suitable terminal extraction tool, remove the terminals from the connector as indicated in order to replace the component.
