Fuel Fired Booster Heater (G1818558): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
  1. Refer to: STARTUP BATTERY DISCONNECT AND CONNECT .
  2. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  3. Refer to: AIR CLEANER .
  4. Refer to: COOLING SYSTEM DRAINING AND VACUUM FILLING .
  5. Refer to: FRONT BUMPER - PROJECT 8 .
  6. CAUTION: Be prepared to collect escaping coolant.

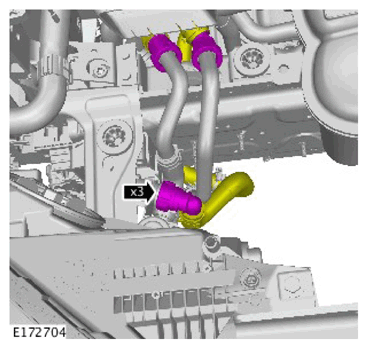

    G11310650Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

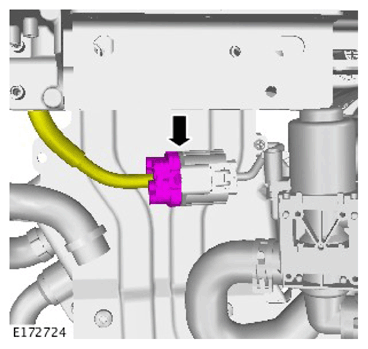

  7. G11310651Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  8. CAUTION: Be prepared to collect escaping fuel.

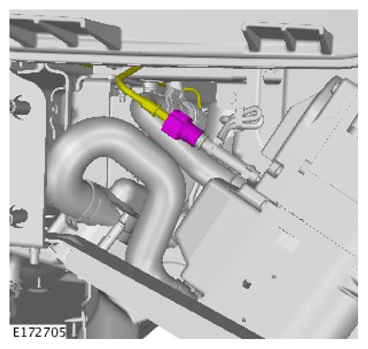

    G11310652Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

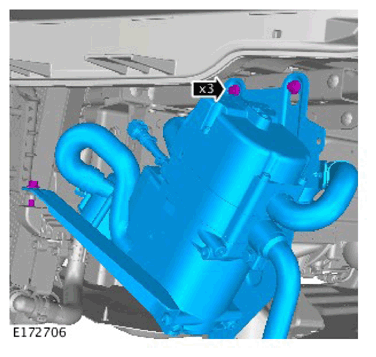

  9. G11310653Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

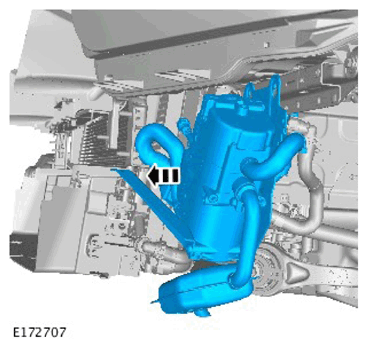

  10. G11310654Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
