Electric Booster Heater (G1818557): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

Refer to: STARTUP BATTERY DISCONNECT AND CONNECT .
The following step(s) applies to:

Left-hand drive vehicles
Refer to: STEERING COLUMN .
The following step(s) applies to:

Right-hand drive vehicles
Refer to: GLOVEBOX .
The following step(s) applies to:

All vehicles

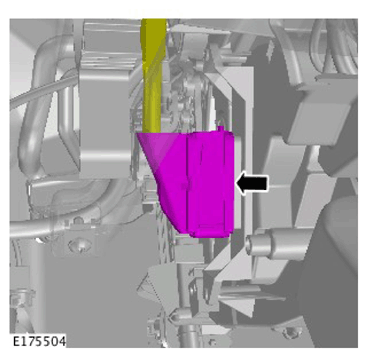

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

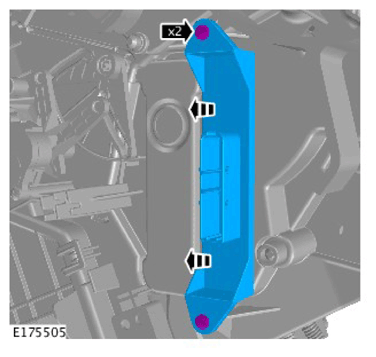

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION: Take extra care not to damage the clips or screw threads. Failure to follow this instruction may result in damage to the climate control assembly.

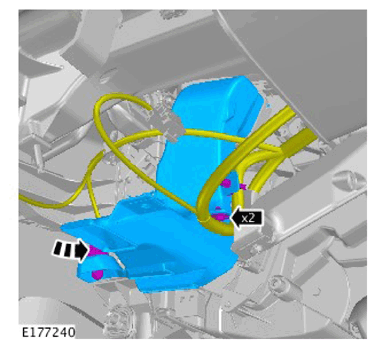

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 1.3Nm
