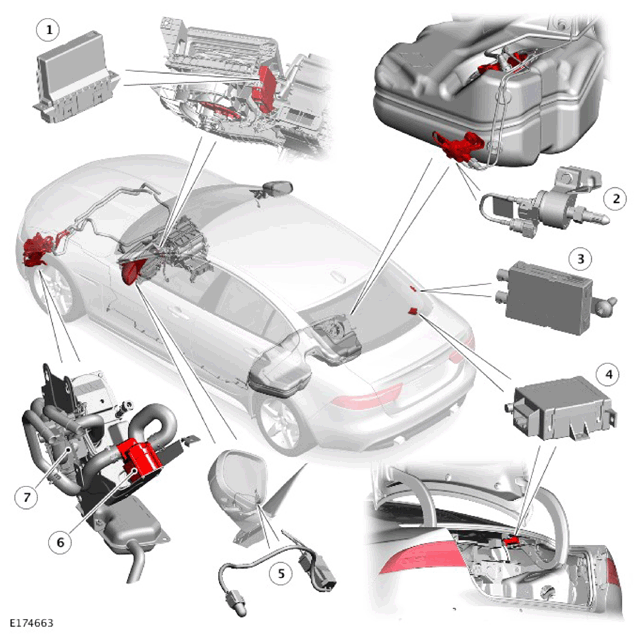

Component Location
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
| ITEM | DESCRIPTION |
|---|---|
| 1 | HVAC Control Module |
| 2 | Fuel Fired Booster Heater (FFBH) fuel pump |
| 3 | Fuel Fired Booster Heater (FFBH) antenna amplifier (vehicles with timed climate control only) |
| 4 | Fuel Fired Booster Heater (FFBH) receiver (vehicles with timed climate control only) |
| 5 | Ambient Air Temperature (AAT) sensor |
| 6 | Fuel Fired Booster Heater (FFBH) coolant pump |
| 7 | Fuel Fired Booster Heater (FFBH) coolant changeover valve (vehicles with timed climate control only) |
