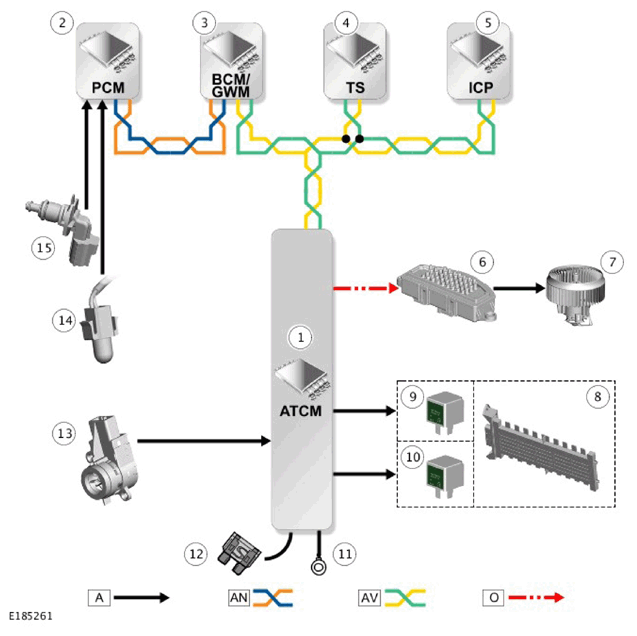

Control Diagram
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
A = HARDWIRED; AN = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) POWERTRAIN SYSTEMS BUS; AV = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) COMFORT SYSTEMS BUS; O = LOCAL INTERCONNECT NETWORK (LIN) BUS.
| ITEM | DESCRIPTION |
|---|---|
| 1 | HVAC Control Module |
| 2 | Powertrain Control Module (PCM) |
| 3 | Body Control Module/Gateway Module (BCM/GWM) assembly |
| 4 | Touch Screen (TS) |
| 5 | Integrated Control Panel (ICP) |
| 6 | Blower control module |
| 7 | Blower |
| 8 | Electric booster heater |
| 9 | Relay 1 - Electric booster heater |
| 10 | Relay 2- Electric booster heater |
| 11 | Ground |
| 12 | Power supply |
| 13 | In-vehicle temperature sensor |
| 14 | Ambient Air Temperature (AAT) sensor |
| 15 | Engine Coolant Temperature (ECT) sensor |
