Electric Booster Heater
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

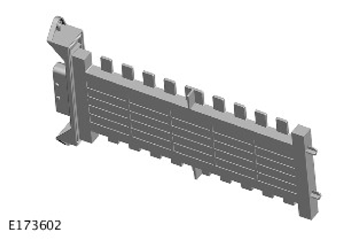

The electric booster heater is installed in the climate control assembly, on the downstream side of the heater core. It consists of ceramic coated positive temperature coefficient thermistor elements, rated at 1 kW. Electrical power for the booster heater is supplied via two 40 A fuses. Operation of the electric booster heater is controlled by the HVAC Control Module.
