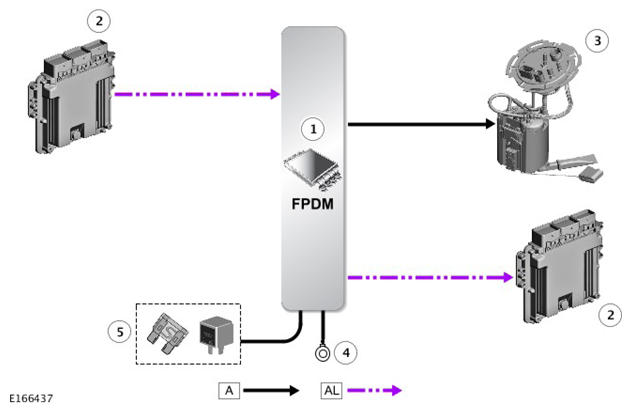

Control Diagram
WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
A = HARDWIRED; AL = PWM (PULSE WIDTH MODULATION)
| ITEM |
DESCRIPTION |
| 1 |
Fuel Pump Driver Module (FPDM) |
| 2 |
Engine Control Module (ECM) |
| 3 |
Fuel Pump Module |
| 4 |
Ground |
| 5 |
Power supply and fuel pump relay - Rear Junction Box (RJB) |
