Component Location
WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

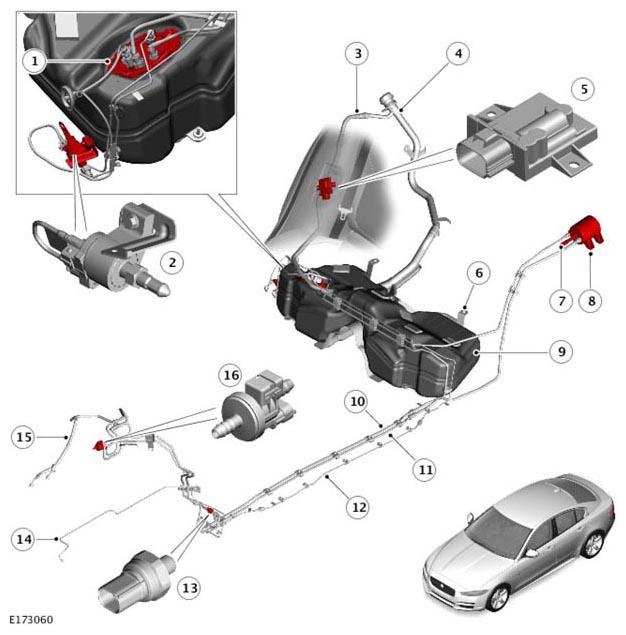

V6 3.0L SC Petrol - Fuel Tank And Lines
| ITEM | DESCRIPTION |
|---|---|
| 1 | Fuel pump module |
| 2 | FFBH fuel pump (if fitted) |
| 3 | Pipe - fuel tank breather |
| 4 | Fuel filler assembly |
| 5 | Fuel Pump Driver Module (FPDM) |
| 6 | Fuel tank support strap (2 off) |
| 7 | Evaporative emissions canister breather |
| 8 | Evaporative emissions canister |
| 9 | Fuel tank assembly |
| 10 | Line - fuel supply from fuel pump module |
| 11 | Line - fuel vapor to purge valve |
| 12 | Line - FFBH supply (if fitted) |
| 13 | Fuel Low Pressure (LP) sensor |
| 14 | Fuel supply pipe - Fuel Fired Booster Heater (FFBH) (if fitted) |
| 15 | Pipe - fuel supply to HP fuel pumps |
| 16 | Purge valve |
