Thermostatic Expansion Valve (G1821695): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Make sure to support the vehicle with axle stands.

Raise and support the vehicle.
Refer to: COOLING SYSTEM DRAINING AND VACUUM FILLING
Refer to: COOLING SYSTEM DRAINING AND VACUUM FILLING
Refer to: AIR CONDITIONING SYSTEM RECOVERY, EVACUATION AND CHARGING
Repeat the above procedure for the other side.

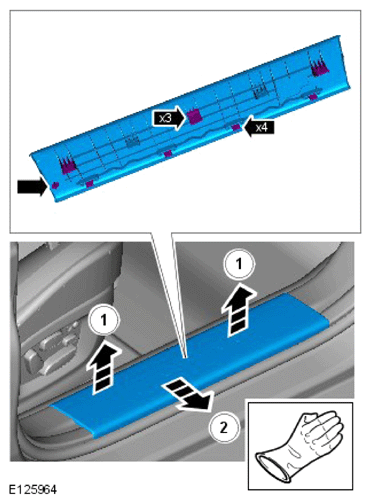

Refer to: FRONT ROW SEAT
Refer to the appropriate Instrument Panel and Console repair information.
Refer to: SECONDARY BULKHEAD RIGHT PANEL - INGENIUM I4 2.0L DIESEL
Refer to: SECONDARY BULKHEAD RIGHT PANEL - V6 S/C 3.0L PETROL

Refer to: SECONDARY BULKHEAD RIGHT PANEL - INGENIUM I4 2.0L PETROL

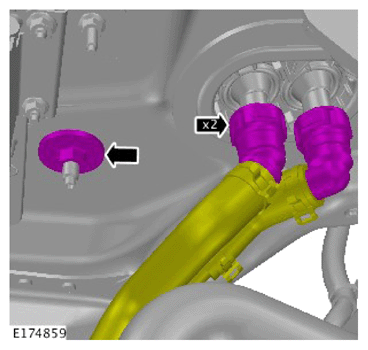

CAUTION: Be prepared to collect escaping coolant.

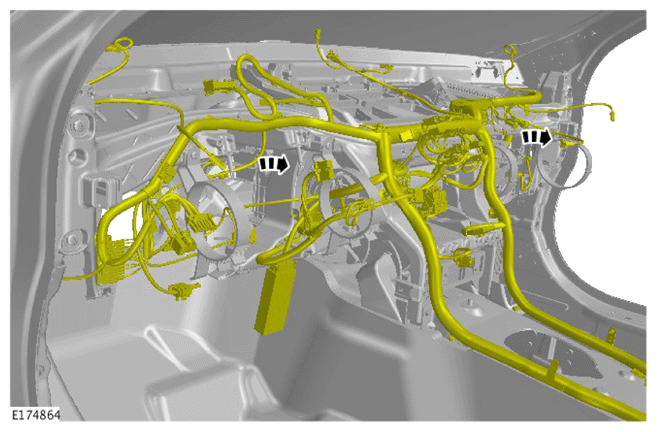

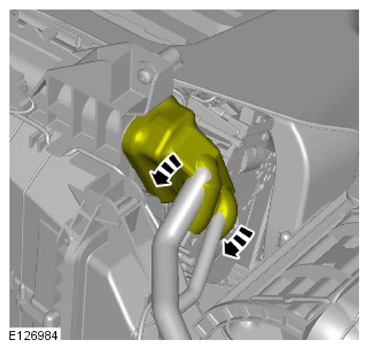

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

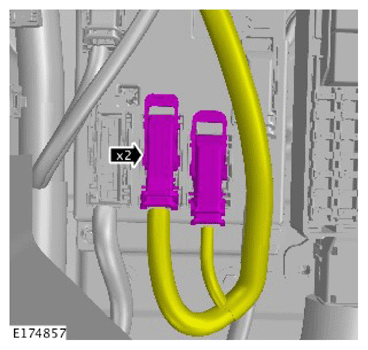

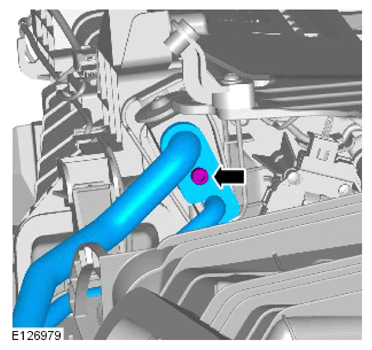

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

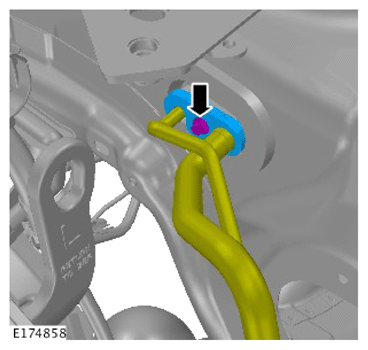

Torque : 9Nm
CAUTION: Make sure that the component is correctly located on the locating dowels.

NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

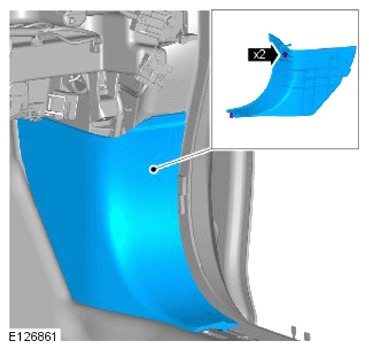

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

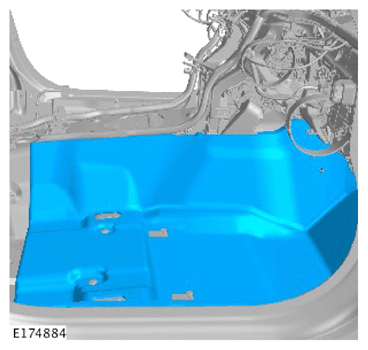

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Repeat the above procedure for the other side.

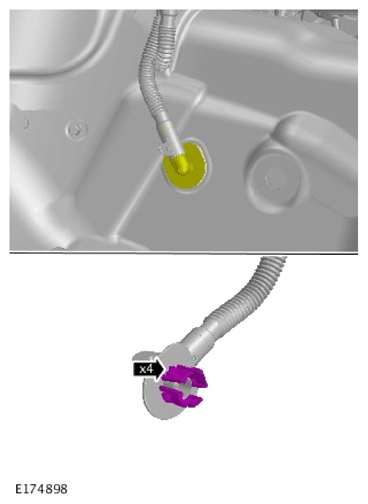

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Repeat for both sides.

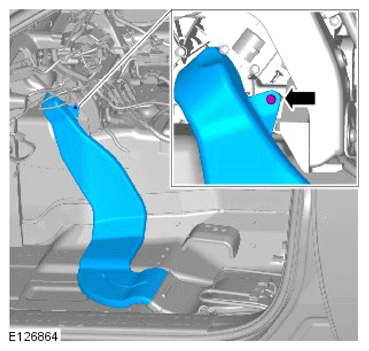

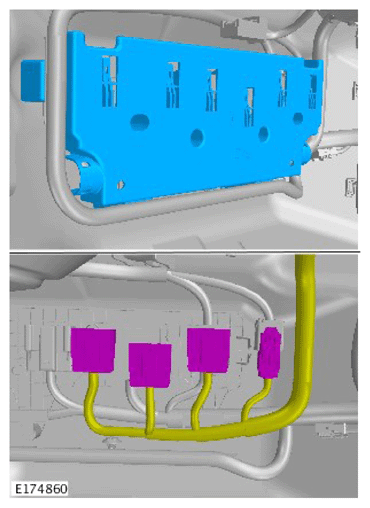

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

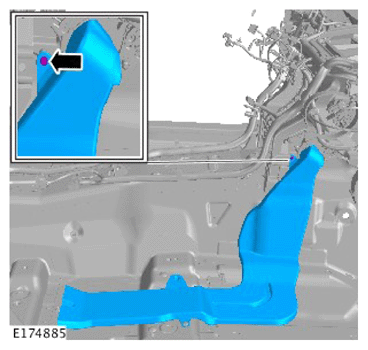

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

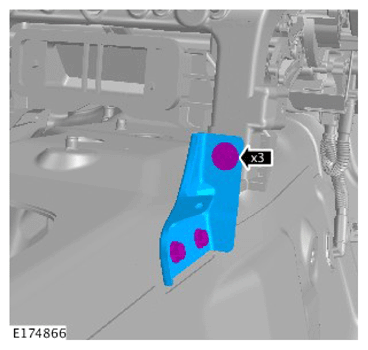

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 1.5Nm

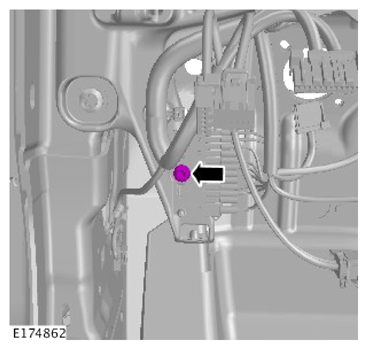

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 1.5Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 9Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

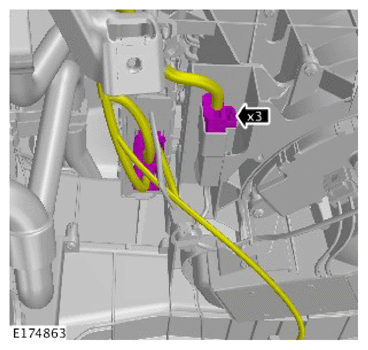

NOTE: Take extra care when removing the clips.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Repeat the above procedure for the other side.

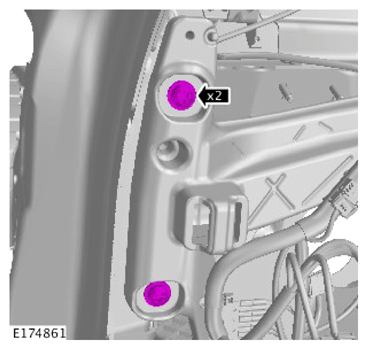

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Repeat the above procedure for the other side.

Torque : 9Nm

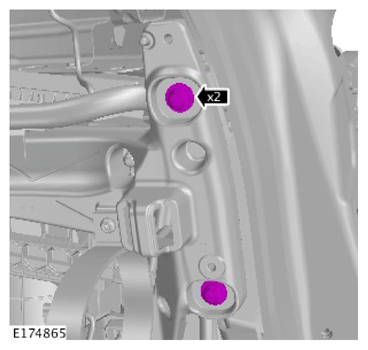

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 9Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 9Nm

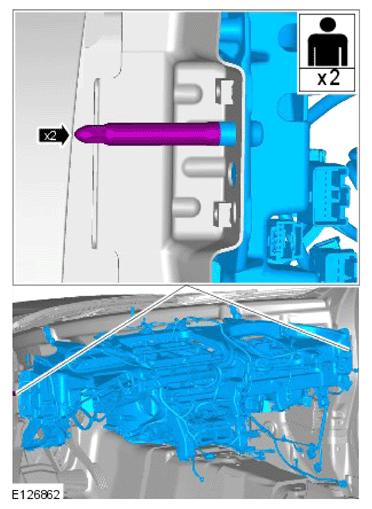

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION: Take extra care not to damage the clips or screw threads. Failure to follow this instruction may result in damage to the climate control assembly.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 1.5Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION:
- Take care not to damage the O-ring seals during installation.
- A new O-ring seal is to be installed.

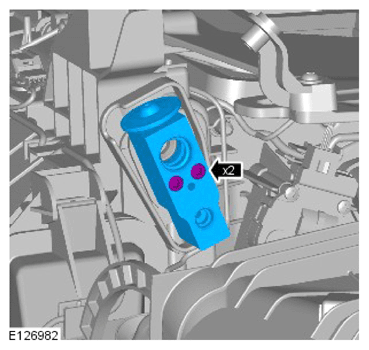

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 5Nm
CAUTION:
- Take care not to damage the O-ring seals during installation.
- A new O-ring seal is to be installed.

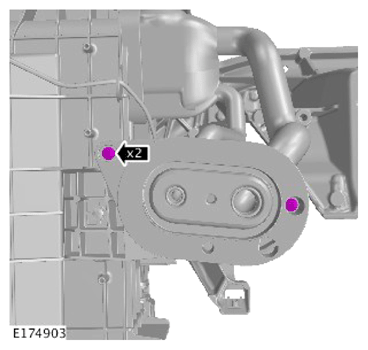

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 3.5Nm
