Desiccant Bag (G1821696): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the condenser.

    Refer to: CONDENSER - INGENIUM I4 2.0L DIESEL/INGENIUM I4 2.0L PETROL

    Refer to: CONDENSER - V6 S/C 3.0L PETROL

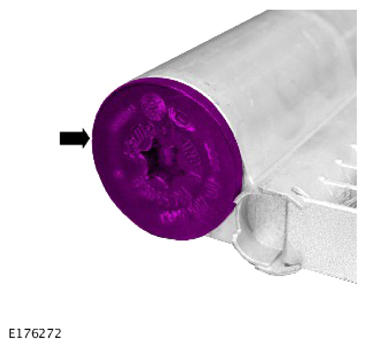

  2. G14008283Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 4.5nmNm

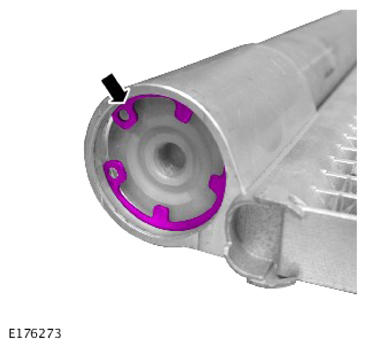

  3. G14008284Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

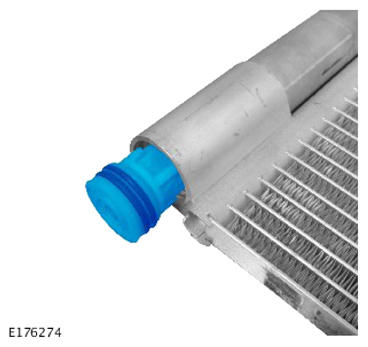

  4. G14008285Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

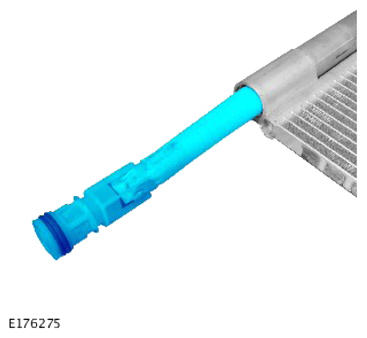

  5. G14008286Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
