Condenser - V6 S/C 3.0L Petrol (G1853300): Removal
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
- Refer to: AIR CONDITIONING SYSTEM RECOVERY, EVACUATION AND CHARGING
- Refer to: FRONT BUMPER

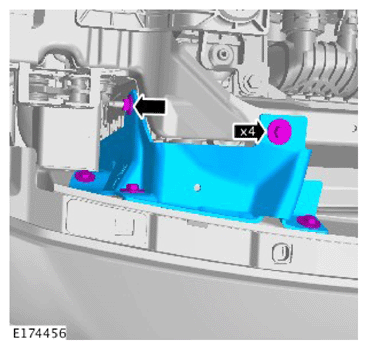

Repeat procedure for the other side.
-

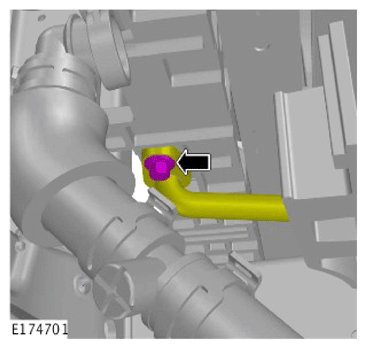

CAUTION:
- Immediately cap all refrigerant lines to prevent ingress of dirt and moisture.
- Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.
- A new O-ring seal is to be installed.
- Take care not to damage the O-ring seals during installation.
Renew Part: Air conditioning pipe to condenser O-ring seal Quantity: 1 .
Torque : 20Nm
-

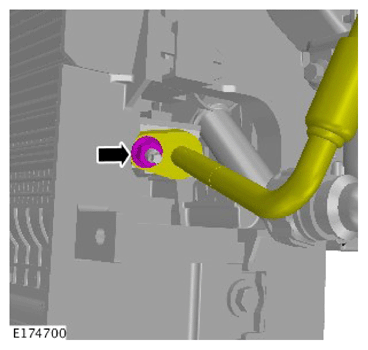

CAUTION:
- Immediately cap all refrigerant lines to prevent ingress of dirt and moisture.
- Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.
- A new O-ring seal is to be installed.
- Take care not to damage the O-ring seals during installation.
Renew Part: Air conditioning pipe to condenser O-ring seal Quantity: 1 .
Torque : 20Nm
Torque : 10Nm
