Condenser - INGENIUM I4 2.0L Diesel/INGENIUM I4 2.0L Petrol (G1853298): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

This procedure contains some variation in the illustration depending on the vehicle specification, but essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Recover the air conditioning refrigerant.
Refer to: AIR CONDITIONING SYSTEM RECOVERY, EVACUATION AND CHARGING
Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Remove the front bumper.
Refer to: FRONT BUMPER - PROJECT 8
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the 2 upper air deflector trims.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

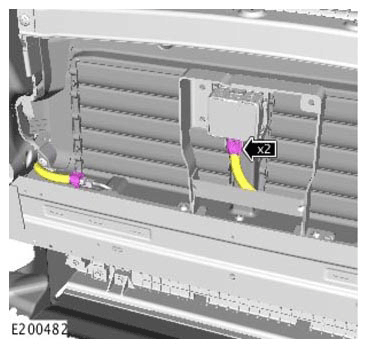

Disconnect the 2 electrical connectors.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

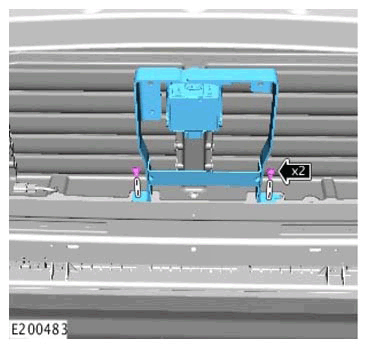

Remove the adaptive speed control module mounting bracket.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

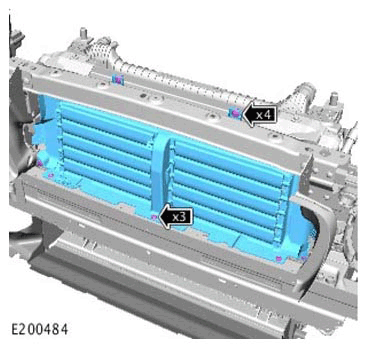

Remove the active radiator vanes.
CAUTION: Immediately cap all refrigerant lines to prevent ingress of dirt and moisture.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

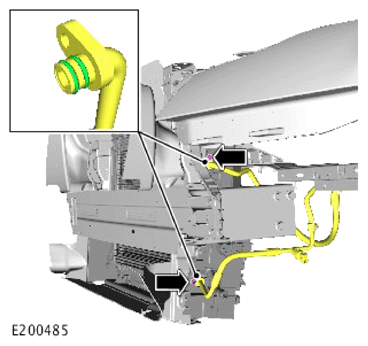

Disconnect the refrigerant lines and discard the O-ring seals.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

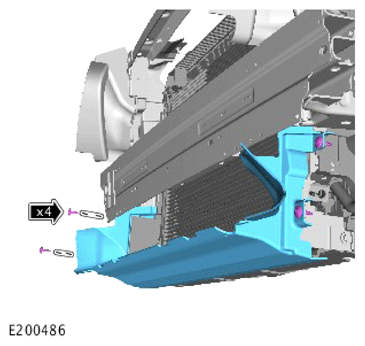

Remove the lower air deflector trim.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

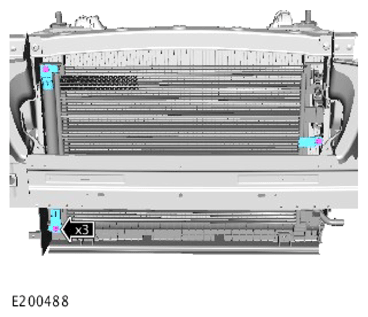

Remove the lower mounting bracket.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

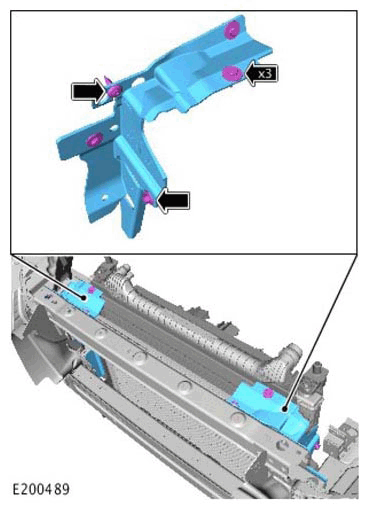

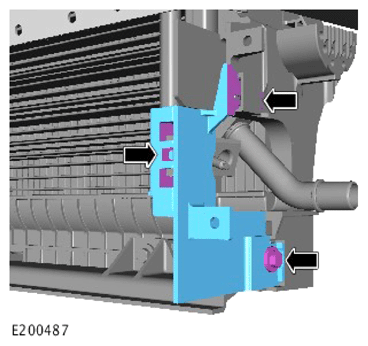

Remove the 3 mounting brackets.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

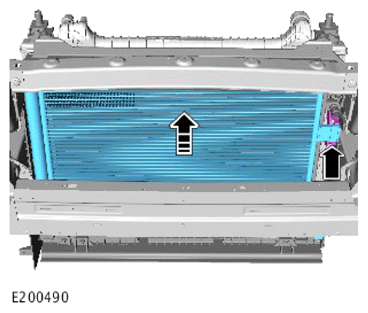

Release the side clip and remove the condenser from the vehicle.
