Blower Motor (G1821678): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
  1. Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
  2. G11314928Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

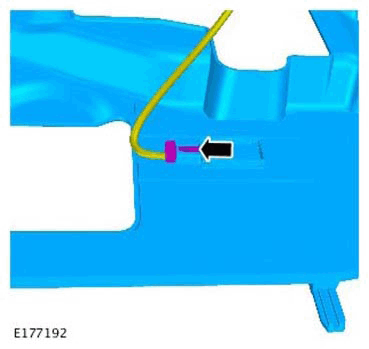

  3. G11314929Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

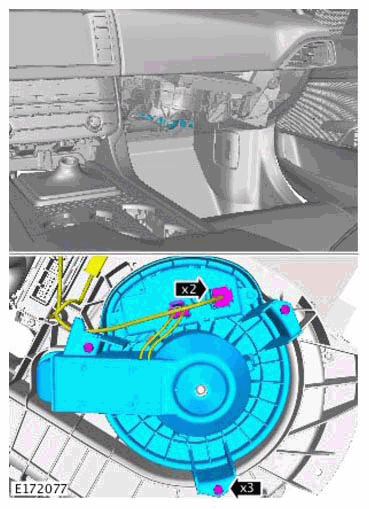

  4. G11314930Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 2.4Nm

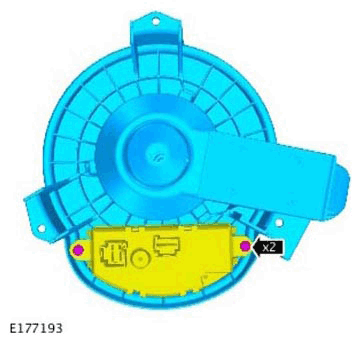

  5. G11314931Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 1.3Nm
