Air Conditioning Condenser - Project 8 (G2251453): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

This procedure contains illustrations showing certain components removed to provide extra clarity.
This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
Make sure that all openings are sealed. Use new blanking caps.

Evacuate the Air Conditioning (A/C) system.
Refer to: AIR CONDITIONING SYSTEM RECOVERY, EVACUATION AND CHARGING
Remove the left headlamp assembly.
Refer to: HEADLAMP ASSEMBLY - PROJECT 8
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

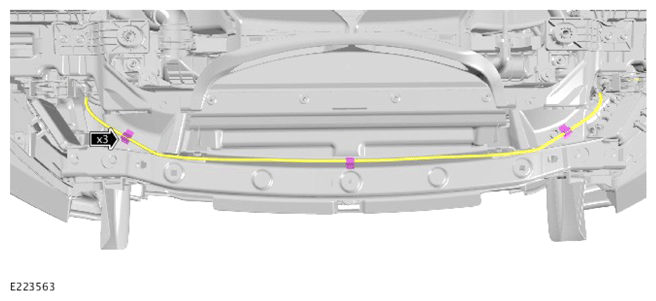

Release the hood release cable.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 4 clips.
- Remove the trim panel.
NOTE: Repeat this step for the other side.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

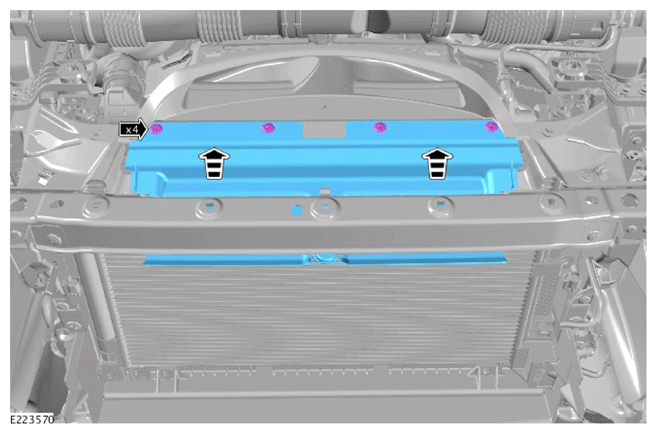

- Remove the nut.
- Remove the 4 bolts.
- Remove the bracket.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

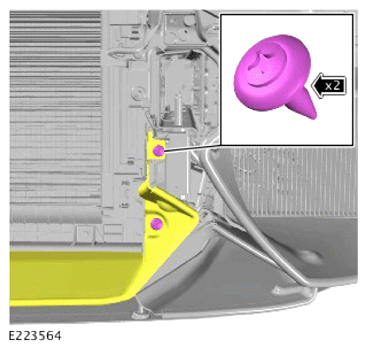

- Remove the 2 clips.
- Release the radiator lower air deflector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

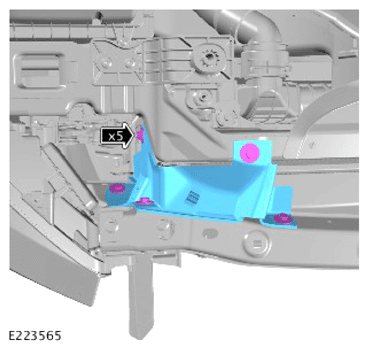

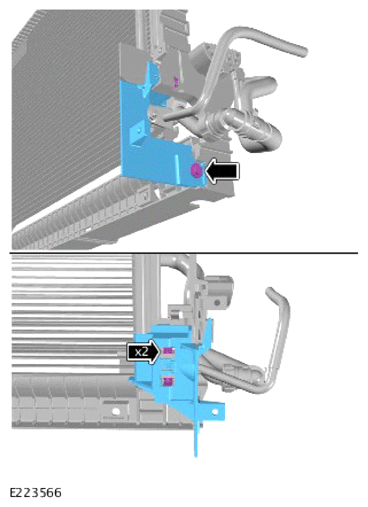

- Remove the bolt.
- Release the 2 clips.
- Remove the bracket.
CAUTION: Remove and discard the O-ring seals.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

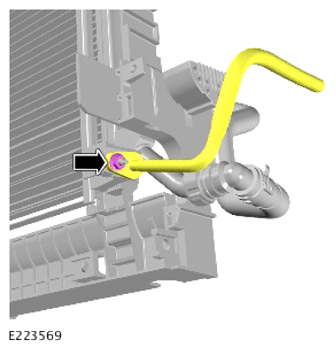

- Remove the nut.
- Release the A/C lower pipe.
CAUTION: Remove and discard the O-ring seals.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

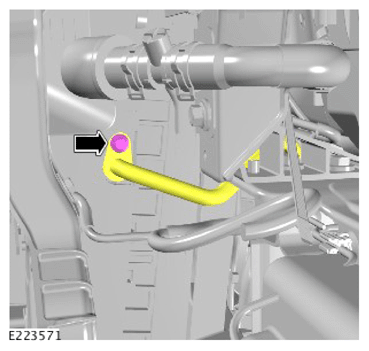

- Remove the bolt.
- Release the A/C upper pipe.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

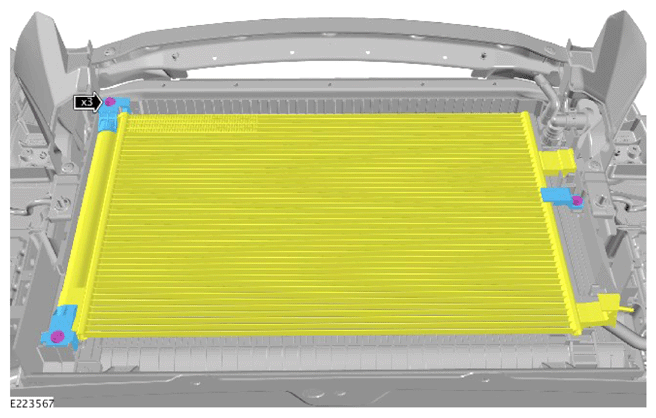

- Remove the 3 bolts.
- Remove the 3 brackets.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

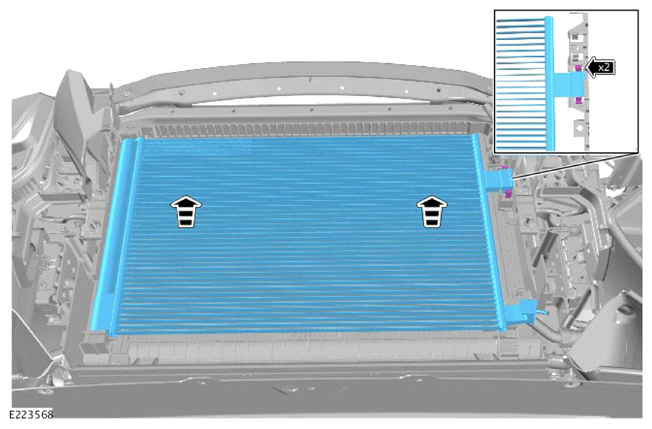

Release the clips.
Remove the A/C condenser.
