Air Conditioning Compressor - V6 S/C 3.0L Petrol (G1853296): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Removal steps in this procedure may contain installation details.
Some components shown removed for clarity.
Some variation in the illustrations may occur, but the essential information is always correct.

WARNING: Make sure to support the vehicle with axle stands.

Raise and support the vehicle.
Refer to: AIR CONDITIONING SYSTEM RECOVERY, EVACUATION AND CHARGING
Refer to: ENGINE UNDERSHIELD
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

If equipped.

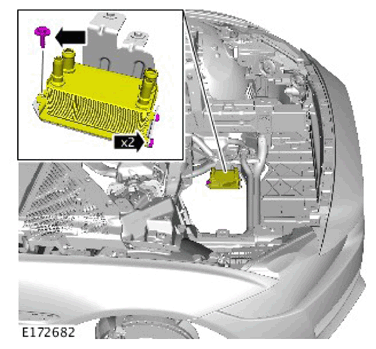

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

If equipped.

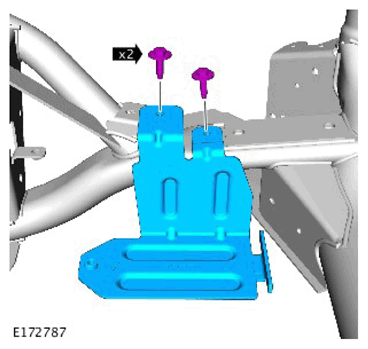

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 9Nm

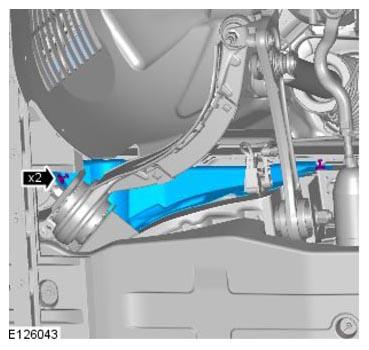

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 9Nm

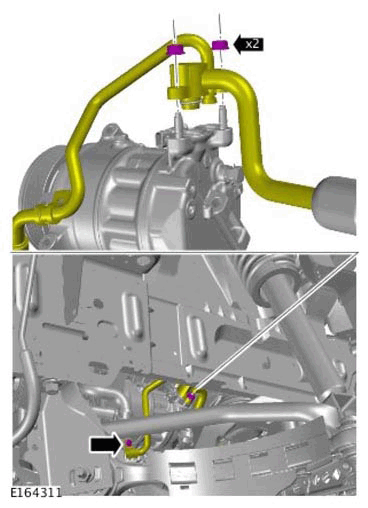

CAUTION:
- Immediately cap all refrigerant lines to prevent ingress of dirt and moisture.
- Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.

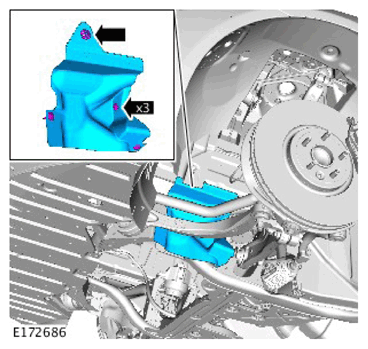

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 9Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

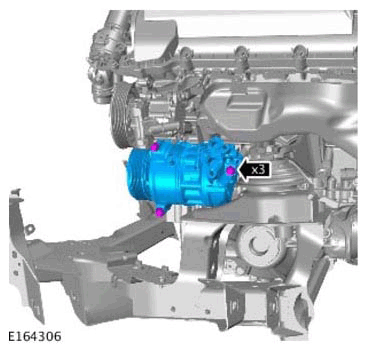

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 25Nm
