Air Conditioning Compressor - Project 8 (G2249568): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all components must be sealed.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Evacuate the Air Conditioning (A/C) system.
Refer to: AIR CONDITIONING SYSTEM RECOVERY, EVACUATION AND CHARGING
Remove the air filter outlet pipe T-connector.
Refer to: AIR FILTER OUTLET PIPE T-CONNECTOR
Remove the accessory drive belt.
Refer to: ACCESSORY DRIVE BELT
Remove the engine undershield.
Refer to: ENGINE UNDERSHIELD - PROJECT 8
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

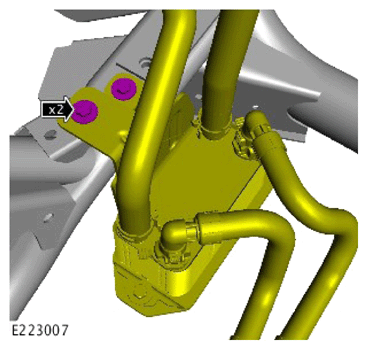

- Remove the 2 bolts.
- Move the transmission cooler away from the subframe.
CAUTION: Immediately cap all refrigerant lines to prevent ingress of dirt and moisture.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

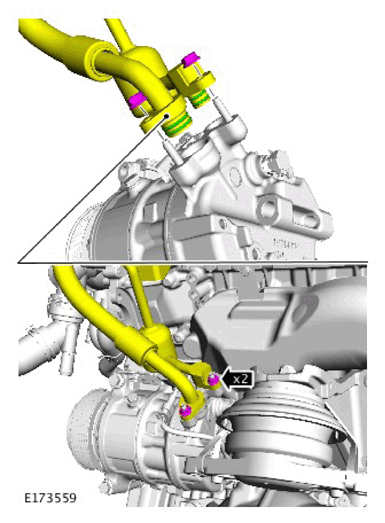

- Remove the 2 nuts.
- Move the A/C pipes away from the A/C compressor.
- Discard the 4 A/C pipe O-ring seals.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

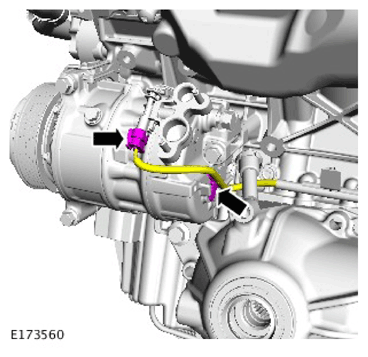

- Disconnect the electrical connector.
- Remove the clip.
- Move the wiring harness away from the A/C compressor.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

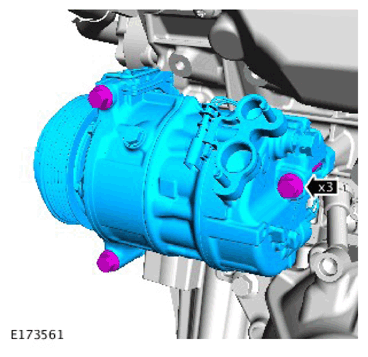

Remove the 3 bolts.
Remove the A/C compressor.
