Air Conditioning Compressor - INGENIUM I4 2.0L Petrol (G2037323): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Recover the refrigerant.
Refer to: AIR CONDITIONING SYSTEM RECOVERY, EVACUATION AND CHARGING
Remove the charge air radiator.
Refer to: CHARGE AIR COOLER
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the 2 clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the 3 clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the 2 nuts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the charge air radiator bracket.
Remove the accessory drive belt.
Refer to: ACCESSORY DRIVE BELT
CAUTION:
- Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.
- Remove and discard the O-ring seals.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

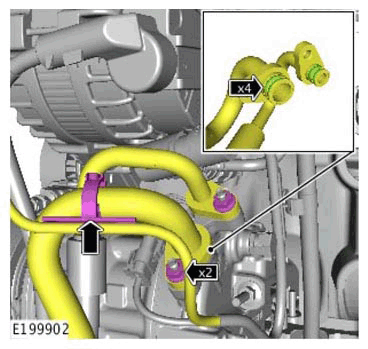

- Remove the clip.
- Remove the 2 nuts.
- Remove and discard the O-ring seals.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

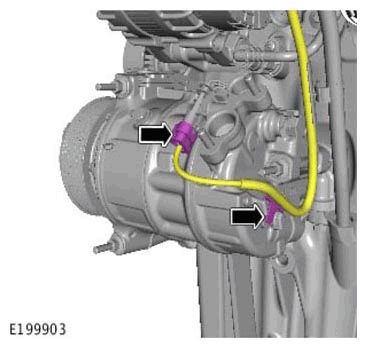

Disconnect the electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

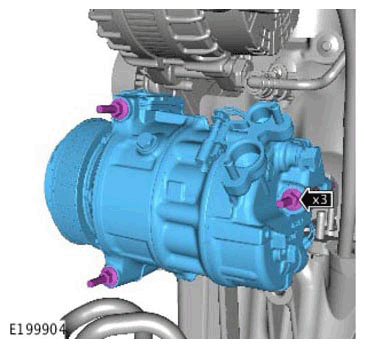

Remove the 3 bolts.
Remove the A/C compressor.
