Air Conditioning Compressor - INGENIUM I4 2.0L Diesel (G1853294): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

Refer to: AIR CONDITIONING SYSTEM RECOVERY, EVACUATION AND CHARGING
Refer to: CHARGE AIR COOLER

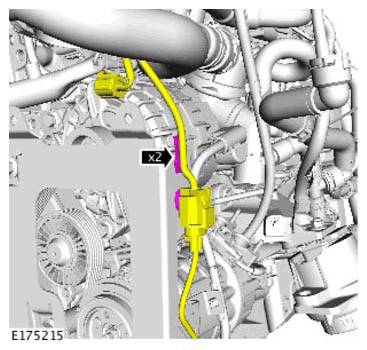

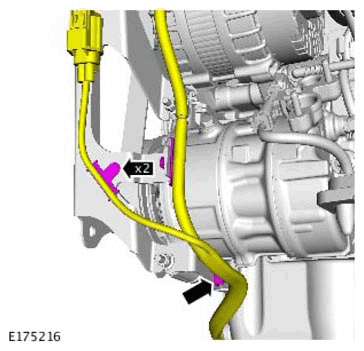

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

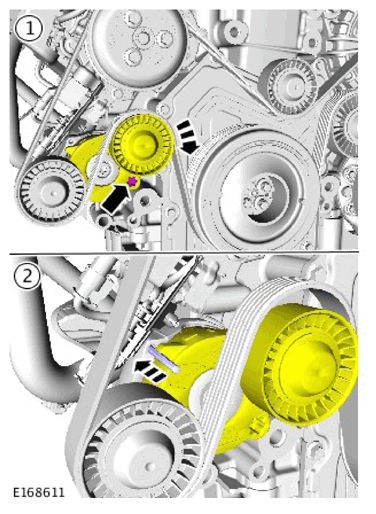

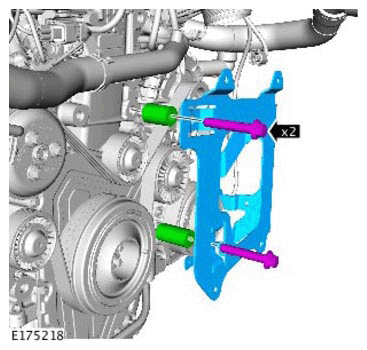

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 10Nm

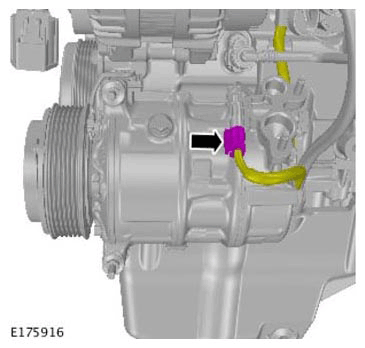

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 47Nm

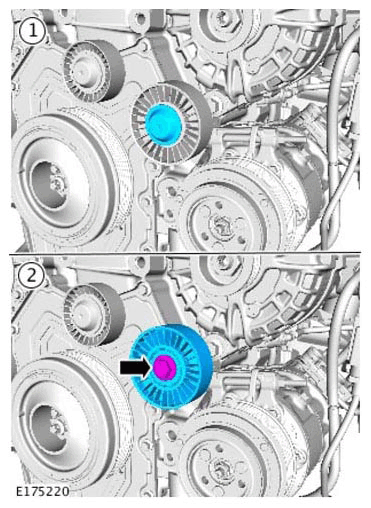

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

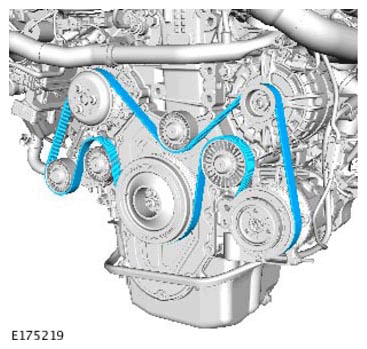

NOTE: Note the fitted position of the accessory drive belt.

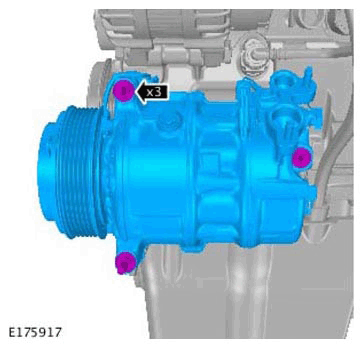

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 47Nm
CAUTION:
- Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.
- Lubricate the new seals with clean refrigerant oil.
NOTE: Install new O-ring seals.

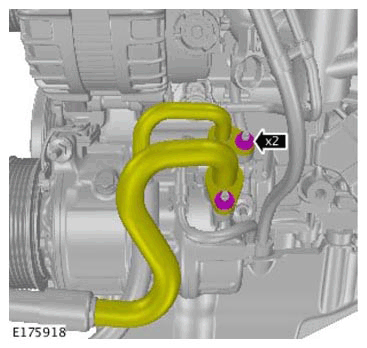

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Renew Part: Air conditioning pipe to compressor O-ring seal(s) Quantity: 4 .

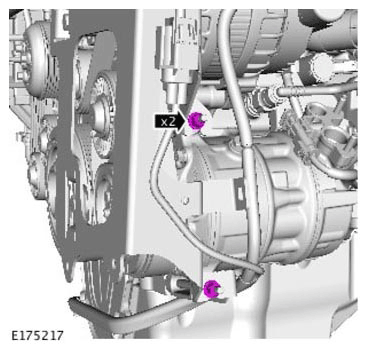

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 25Nm
