Climate Control Assembly
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

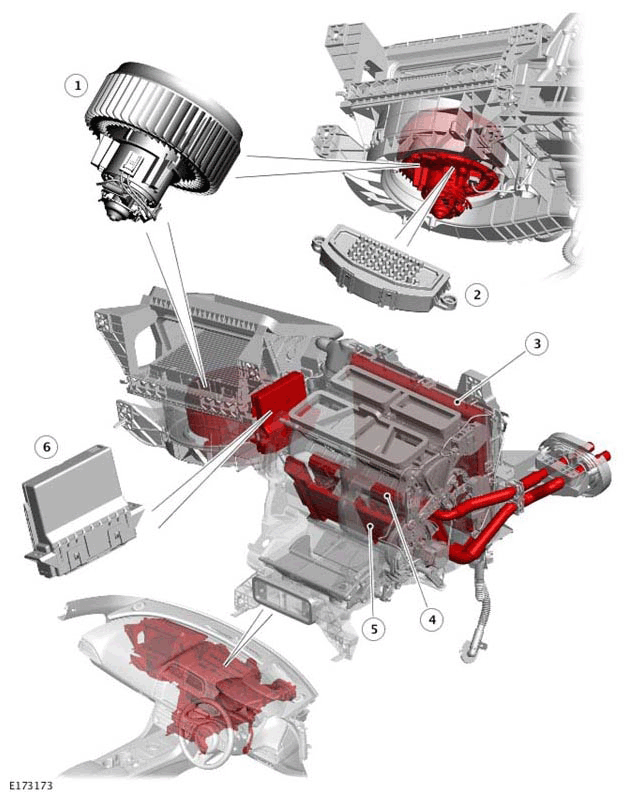

| ITEM | DESCRIPTION |
|---|---|
| 1 | Blower |
| 2 | Blower control module |
| 3 | Air Conditioning (A/C) evaporator |
| 4 | Heater core |
| 5 | Electric booster heater |
| 6 | HVAC Control Module |
The climate control assembly controls the temperature of the air supplied to the air distribution ducts, as directed by the HVAC. The climate control assembly comprises the following components:
- Blower.
- Heater core.
- Interior filter. For additional information, Refer to: AIR DISTRIBUTION AND FILTERING
- A/C evaporator. For additional information, Refer to: AIR CONDITIONING
- Air intake stepper motor. For additional information, Refer to: CONTROL COMPONENTS (412-01 Climate Control, Description and Operation).
- Two distribution motors, For additional information, Refer to: CONTROL COMPONENTS
- Two temperature blend motors. For additional information, Refer to: CONTROL COMPONENTS
- Electric booster heater (if fitted). For additional information, Refer to: ELECTRIC BOOSTER HEATER
