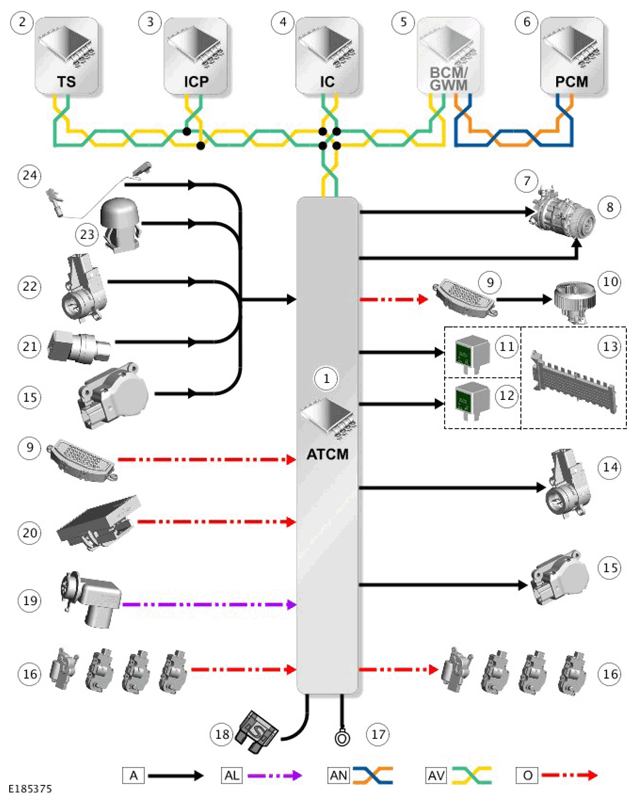

Control Diagram
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
A = HARDWIRED; AL = PULSE WIDTH MODULATION (PWM); AN = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) POWERTRAIN SYSTEMS BUS; AV = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) COMFORT SYSTEMS BUS; O = LOCAL INTERCONNECT NETWORK (LIN) BUS.
| ITEM | DESCRIPTION |
|---|---|
| 1 | HVAC Control Module |
| 2 | Touch Screen (TS) |
| 3 | Integrated Control Panel (ICP) |
| 4 | Instrument Cluster (IC) |
| 5 | Body Control Module/Gateway Module (BCM/GWM) assembly |
| 6 | Powertrain Control Module (PCM) |
| 7 | Air Conditioning (A/C) compressor control valve |
| 8 | Air Conditioning (A/C) compressor clutch |
| 9 | Blower control module |
| 10 | Blower |
| 11 | Relay 1 - Electric booster heater |
| 12 | Relay 2 - Electric booster heater |
| 13 | Electric booster heater |
| 14 | In-vehicle temperature sensor motor |
| 15 | Recirculation motor |
| 16 | Distribution and temperature blend motors |
| 17 | Ground |
| 18 | Power supply |
| 19 | Pollution sensor |
| 20 | Humidity sensor |
| 21 | Refrigerant pressure sensor |
| 22 | In-vehicle temperature sensor |
| 23 | Sunload sensor |
| 24 | Evaporator temperature sensor |
