Pollution Sensor (If Equipped)
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

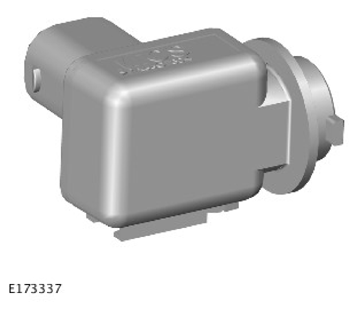

The pollution sensor is mounted onto the climate control assembly intake above the filter element. The pollution sensor allows the HVAC to monitor the air being drawn into the passenger compartment for contaminants commonly found in traffic pollution, such as hydrocarbons, carbon monoxide and oxides of nitrogen.
Power supply for the pollution sensor is provided by the HVAC. The pollution sensor provides separate signals of hydrocarbon and oxidized gases via a Pulse Width Modulation (PWM) signal to the HVAC. With a pollution sensor fitted, the HVAC can control the air intake source to reduce the amount of contaminants entering the passenger compartment.
