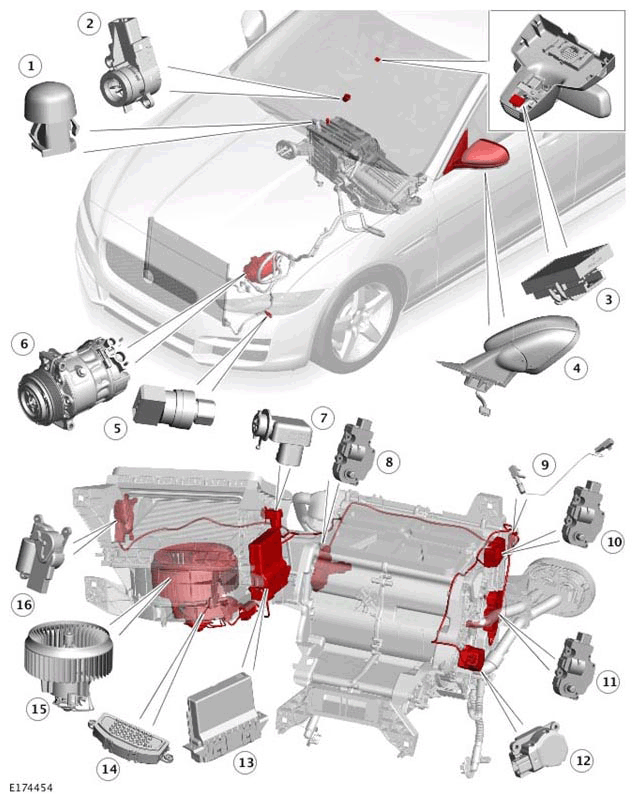

Component Location
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Sunload sensor |
| 2 | In-vehicle temperature sensor |
| 3 | Humidity sensor |
| 4 | Ambient Air Temperature (AAT) sensor |
| 5 | Refrigerant pressure sensor |
| 6 | Air conditioning compressor |
| 7 | Pollution sensor |
| 8 | Distribution and temperature blend motor |
| 9 | Evaporator temperature sensor |
| 10 | Distribution and temperature blend motor |
| 11 | Distribution and temperature blend motor |
| 12 | Distribution and temperature blend motor |
| 13 | HVAC Control Module |
| 14 | Blower control module |
| 15 | Blower |
| 16 | Recirculation motor |
