Thermostatic Expansion Valve

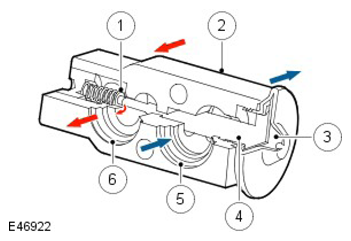

| ITEM | DESCRIPTION |
|---|---|
| 1 | Metering valve |
| 2 | Housing |
| 3 | Diaphragm |
| 4 | Temperature sensor |
| 5 | Outlet passage from evaporator |
| 6 | Inlet passage to evaporator. |
The Thermostatic Expansion Valve (TXV) meters the flow of refrigerant into the evaporator to match the refrigerant flow with the heat-load of the air passing through the evaporator.
The TXV is a block type valve located behind the climate control assembly, and attached to the inlet and outlet ports of the evaporator. The TXV consists of an aluminum housing containing inlet and outlet passages. A ball and spring metering valve is installed in the inlet passage and a temperature sensor is installed in the outlet passage. The temperature sensor consists of a temperature sensitive tube connected to a diaphragm. The bottom end of the temperature sensitive tube acts on the ball of the metering valve. Pressure on top of the diaphragm is controlled by the evaporator outlet-temperature conducted through the temperature sensitive tube. The bottom of the diaphragm senses evaporator outlet pressure.
Liquid refrigerant flows through the metering valve into the evaporator. The restriction across the metering valve reduces the pressure and temperature of the refrigerant. The restriction also changes the liquid stream of refrigerant into a fine spray, to improve the evaporation process. As the refrigerant passes through the evaporator, it absorbs heat from the air flowing through the evaporator. The increase in temperature causes the refrigerant to vaporize and increase in pressure.
The temperature and pressure of the refrigerant leaving the evaporator acts on the diaphragm and temperature sensitive tube, which regulate the metering valve opening and so controls the volume of refrigerant flowing through the evaporator. The warmer the air flowing through the evaporator, the more heat available to evaporate refrigerant and thus the greater volume of refrigerant allowed through the metering valve.
