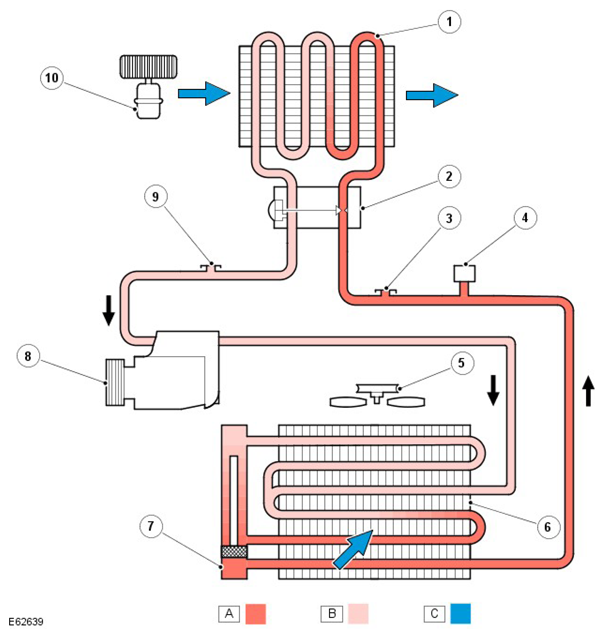

Input/Output Diagram
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
A = Refrigerant liquid; B = Refrigerant vapor; C = Air flow
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
| ITEM |
DESCRIPTION |
| 1 |
Evaporator |
| 2 |
TXV |
| 3 |
High pressure servicing connection |
| 4 |
Refrigerant pressure sensor |
| 5 |
Electric cooling fan |
| 6 |
Condensor |
| 7 |
Receiver/drier |
| 8 |
A/C compressor |
| 9 |
Low pressure servicing connection |
| 10 |
Blower |
