Air Conditioning (G1817982): Description: CONDENSOR

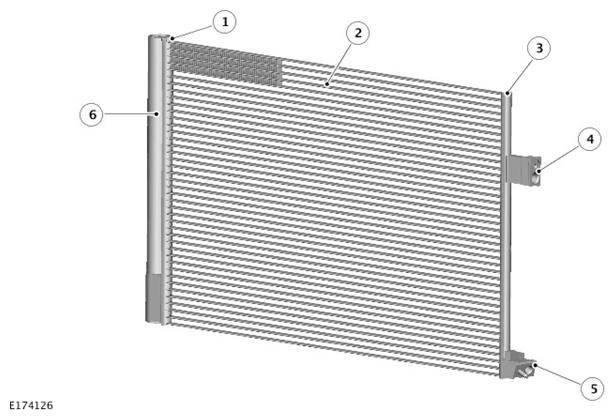

| ITEM | DESCRIPTION |
|---|---|
| 1 | End tank |
| 2 | Condenser core |
| 3 | End tank |
| 4 | High pressure compressor discharge line connector block |
| 5 | High pressure liquid outlet line connector block |
| 6 | Receiver/Drier |
The condensor transfers heat from the refrigerant to the surrounding air to cool the refrigerant and therefore convert the high-pressure vapor from the compressor into a liquid. The condensor is installed immediately in front of the engine coolant radiator.
The condensor is classified as a sub-cooling condensor and consists of a fin and tube heat-exchanger core, installed between two end tanks. Divisions in the end tanks separate the heat exchanger into a four-pass upper (condensor) section and a two-pass lower (sub-cooler) section.
The right end tank provides the connections to the high-pressure line from the A/C compressor and the liquid line to the evaporator.
Receiver/Drier
The receiver/drier is integral with the condensor left end-tank and removes solid impurities and moisture from the refrigerant. It also acts as a reservoir for liquid refrigerant to accommodate changes of heat load at the evaporator.
Refrigerant entering the receiver drier passes through a filter and a desiccant pack, then collects in the base of the unit before flowing through the outlet pipe back to the condensor.
