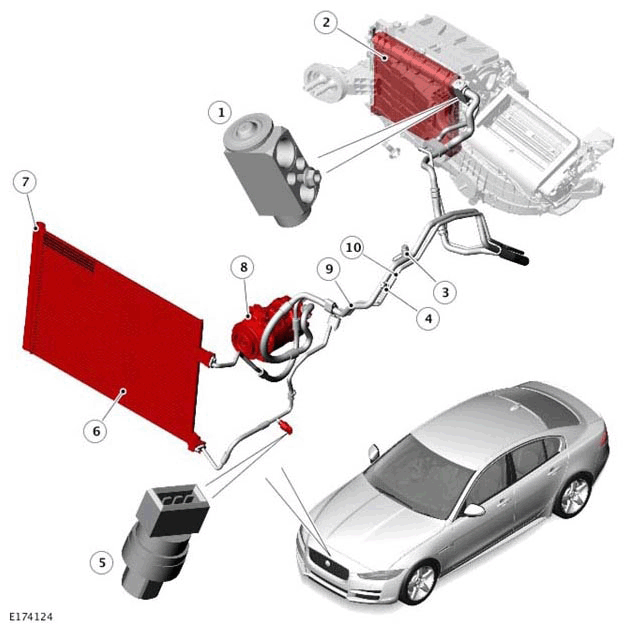

Component Location
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
| ITEM |
DESCRIPTION |
| 1 |
Thermostatic eXpansion Valve (TXV) |
| 2 |
Evaporator |
| 3 |
Low pressure servicing connection |
| 4 |
High pressure servicing connection |
| 5 |
Refrigerant pressure sensor |
| 6 |
Condensor |
| 7 |
Receiver/drier |
| 8 |
Air Conditioning (A/C) compressor |
| 9 |
Low pressure line |
| 10 |
High pressure line |
