4 Seat Torque Specifications
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

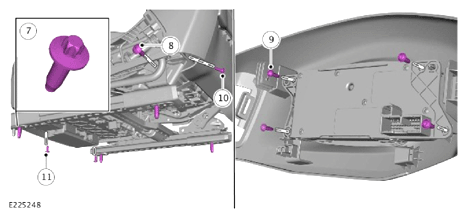

COMPONENT TORQUE LOCATION
COMPONENT TORQUE LOCATION
| DESCRIPTION | NM | LB-FT | LB-IN | |
|---|---|---|---|---|
| 7 | Front row seat retaining bolts | 60 | 44.25 | - |
| 8 | Front row seatbelt pretensioner bolt | 40 | 29.5 | - |
| 9 | Front row seat switchpack bolts | 2 | - | 17.7 |
| 10 | Front row seat outer valance bolt | 2 | - | 17.7 |
| 11 | Front row seat module bolts | 2 | - | 17.7 |

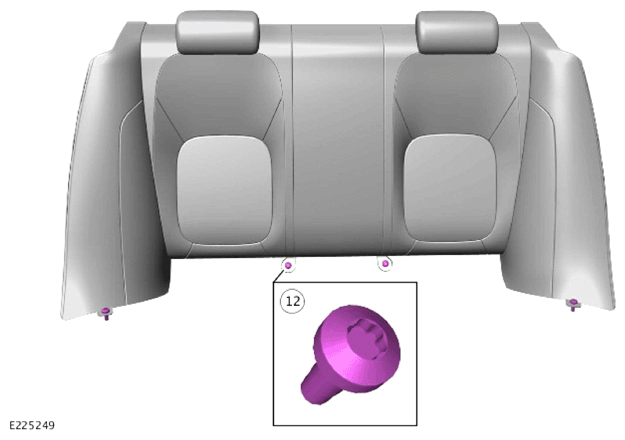

| 12 | Second row seat backrest frame bolts | 30 | 22.1 | - |
