2 Seat Torque Specifications
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
COMPONENT TORQUE LOCATION
COMPONENT TORQUE LOCATION
TORQUE SPECIFICATION
| DESCRIPTION | NM | LB-FT | LB-IN | |
|---|---|---|---|---|
| 1 | Front row seat retaining bolts | 47 | 34.66 | - |
| 2 | Front row seatbelt retaining bolt | 40 | 29.5 | - |

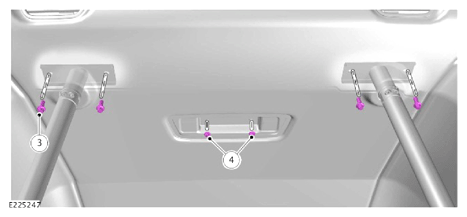

| 3 | Seatbelt retention bar mount bolts | 40 | 29.5 | - |
| 4 | Passenger compartment rear trim nuts | 9 | - | 80 |
| 5 | Seatbelt retention bar lower mount bolts | 40 | 29.5 | - |
| 6 | Seatbelt retention bar bolts | 30 | 22.1 | - |
