Second Row Seat Cushion Cover - Project 8 (G2248106): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.

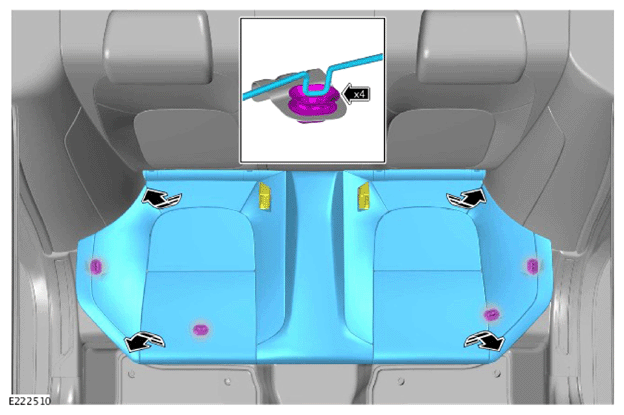

  1. G14010992Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Release the 4 clips.
    • Remove the second row seat cushion.
  2. NOTE: Repeat this step for the other side.

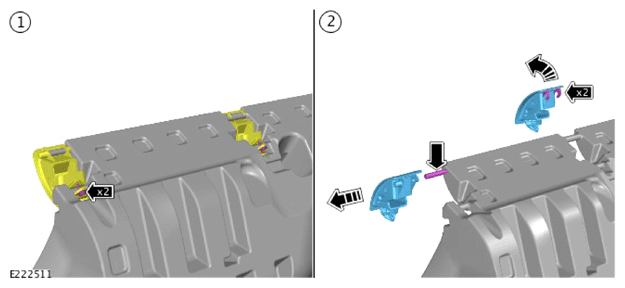

    G14010993Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 2 screws.
    • Remove the child seat anchor trim covers.

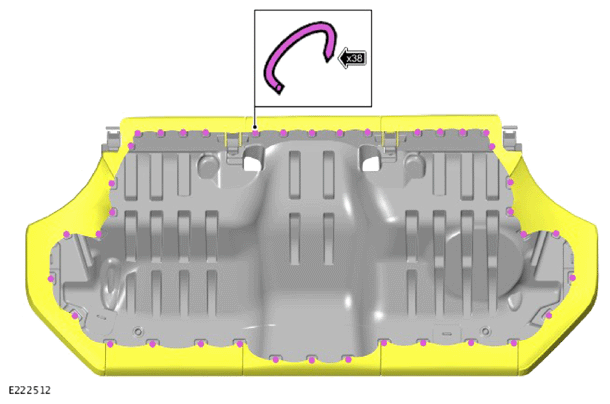

  3. G14010994Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Release the 38 hog rings.

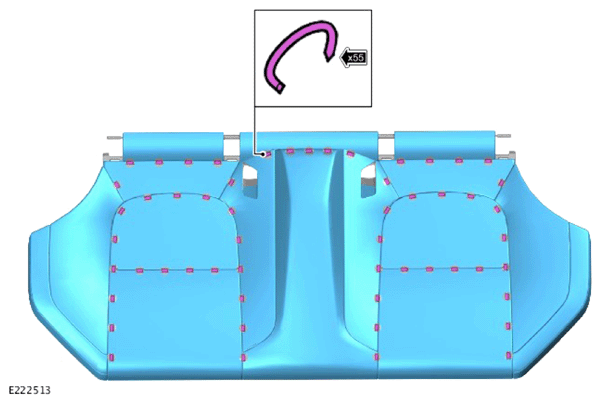

  4. G14010995Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Release the 55 hog rings.
    • Remove the second row seat cushion cover.
