Second Row Seat Cushion Cover - Project 8 (G2248106): Installation

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

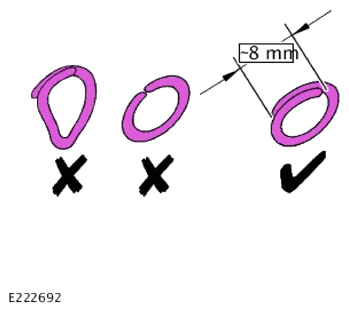

- Use hog ring pliers to close the hog rings. Do not use any other tool. The hog rings must be closed to overlap as illustrated.
- Make sure that new hog rings are installed.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

General Equipment: Hog ring pliers
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the second row seat cushion cover.

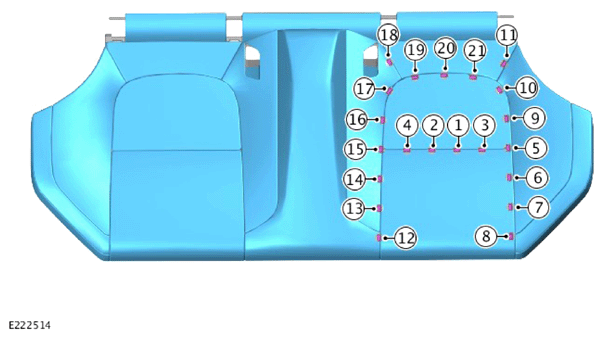

- Install 21 new hog rings in the sequence illustrated.
Renew Part: Hog rings Quantity: 21 .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

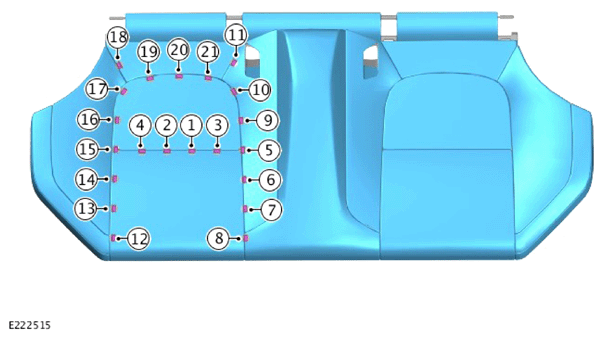

Install 21 new hog rings in the sequence illustrated.

Renew Part: Hog rings Quantity: 21 .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

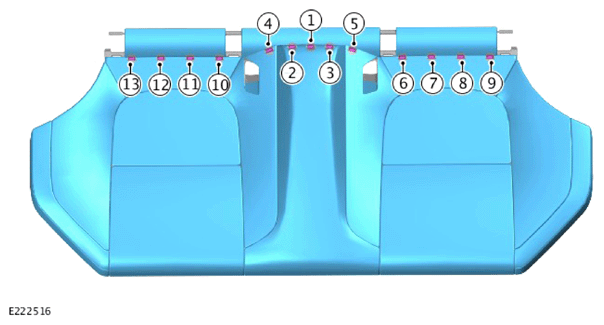

Install 13 new hog rings in the sequence illustrated.

Renew Part: Hog rings Quantity: 13 .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

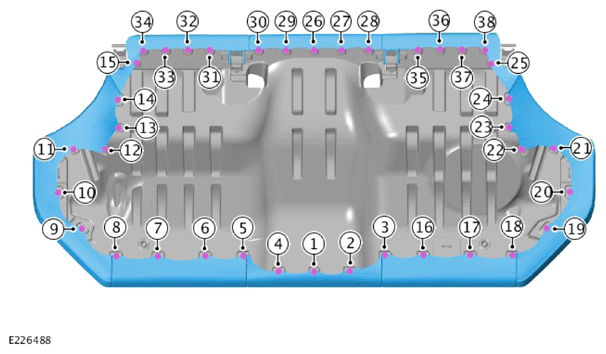

Install 38 new hog rings along the lower edge of the cushion in the sequence illustrated.

Renew Part: Hog rings Quantity: 38 .
- Install the child seat anchor trim covers.
- Install and tighten the 4 screws.
Torque : 2Nm
Install the second 7. row seat cushion.
