Second Row Seat Backrest Heater Element (G2203892): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  1. Remove the second row seat backrest cover.

    Refer to: REAR SEAT BACKREST COVER

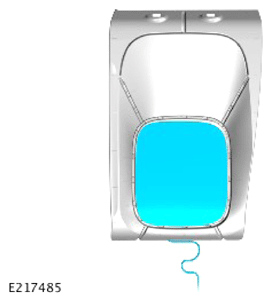

  2. G14010969Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the second row seat backrest heater element.
